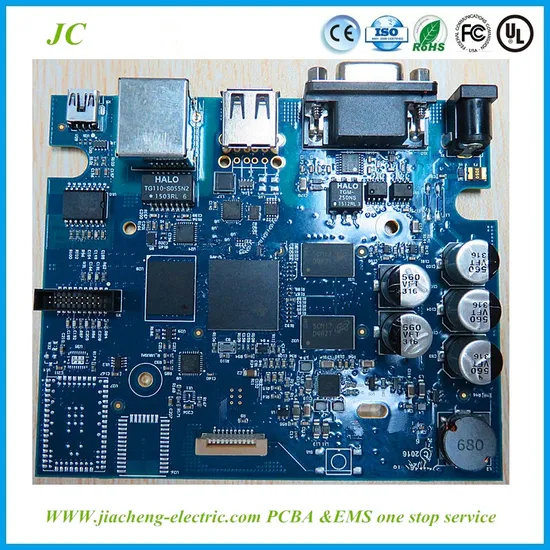

Turnkey Service for Fr4 Multilayer PCBA with BGA Process Custormized

Product Description

Key Specifications:
Application:	Pb-free PCBA for medical,industrial,automotive and other electrical products.
PCB Board assembly	SMT & PTH & BGA &DIP
PCB material	FR-4, FR-4 High ,HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
Layer:	1 to 20 layers PCB layout, fabrication, PCB assembly and casing/chassis design PCBA
PCBA service	Components sourcing and purchasing
	Quick prototyping
	Plastic injection molding
	Metal sheet stamping
	Box building.
Test:	AOI, In-Circuit Test (ICT), Functional Test (FCT),X-ray Test( for BGA), Conformal coating test, Aging test, IC pre-programming / Burning on-line
Custom clearance for material importing and product exporting

Capacity
SMT	Lines : 9(5 Yamaha,4 KME)
	Capacity: 52 million placements per month
	Max Board Size: 457*356mm.(18"X14")
	Min Component size 01015. 4 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP
	Min.pin space of IC 0.3mm
	Max.precision of IC assembly ±0.03mm
	Min. space of BGA 0.3mm
	Speed 0.15 sec/chip,0.7 sec/QFP
	Max board width 400 mm
DIP	Type Dual wave
	Pbs status Lead-free line support
	Max temp 399 degree C
	Spray flux add-on
	Pre-heat 3
	DIP capacity ≥100k parts/day
Assembly	electronic product final assembly 100k/month

WHO WE ARE? Shenzhen Jiacheng Group company are one stop integration solution provider, sub company focus on each professional field(LED lights,Wire harness ,PCB Assembly(SMT,DIP,AI),Sheet metal fabrication ) to do our best OEM ODM service for customer,welcome visit and audit factory! good cooperation start here... PCBA BU have more than 10 years of SMT manufacturing experience, well appointed SMT ,DIP and assembly lines, offering one stop service from SMT,FPC,DIP,EMS, conformal coating, testing, final assembly, component procurement ,design, peripheral products support and so on. we are equipped with High-speed and accurately SMT Equipment ,and we provide a whole range of SPI,AOI,ICT,FCT,X-RAY,ROHS and aging testing for products. All ourshop floors are dust free, all lines are lead free, we are ISO9001 certified company. We open bom cost quotation,with high quality control strategy and 8D analysis method,we focus on top market customers, such as PCBAs on medical , industrial , financial,robotic,automobile , New Energy. We service for many global customers,such as the globe leader in grain processing and a leading solution provider;the top 3 in medical industry customer in China; the global leader in Telehealth Sensors industry and so on.
WHY CHOOSE US? High Quality ISO9001 certified company, we have a very robust quality system and professional quality team; Reliable Supply Chain,We have established long-term strategic cooperation with the top electronic components manufacturers all over the world, such as Xilinx, TI, Avnet, Future and etc;High manufacturing capability, our PCB can reach a max layers of 64, minimum placement component size can meet 0201 and minimum placement spacing of BGA can meet 0.3mm;We have complete inspection and testing for PCBA, including SPI,AOI,ICT,FCT,X-RAY,ROHS and aging. Quick Response We offer fast and opened BOM quotation to customers;10 years of cooperation experience with European and North American clients, quickly and professionally respond customer requirements. One Stop Service We professionally offer the service of PCB Assembly (SMT, DIP, MI, AI), component procurement, product final assembly, testing, PCBA conformal coating, electronic product design and peripheral products support, etc;Our factory is located in Shenzhen, and besides we have warehouses in Hongkong, Europe and North America. We can prepare boards at the warehouse which is close to the customer and afford Kanban service according to customer req
