Construction High Speed Henglong Marble&Granite Stone Cutter Block Cutting Machine
| US$26,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HLLD-2200/2500/3000
Type
Hydraulic Cutting Machine
Usage
Ceramics, Jadestone, Cement Brick, Granite, Marble
Application
Machinery & Hardware, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Certification
SONCAP, ISO, CE
Power of Main Motor
55kw
Saw Blade Diameter
2500mm
Cutting Length
3600mm
Cutting Width
2300mm
Total Power
67kw
Gross Weight
13000kg
Transport Package
Standard Export Packaging
Specification
8000*4500*4500mm
Trademark
Henglong
Origin
Fujian, China
HS Code
84641090
Production Capacity
20 Sets/Month
Packaging & Delivery
Package Size
7800.00cm * 3200.00cm * 2500.00cm
Package Gross Weight
13000.000kg

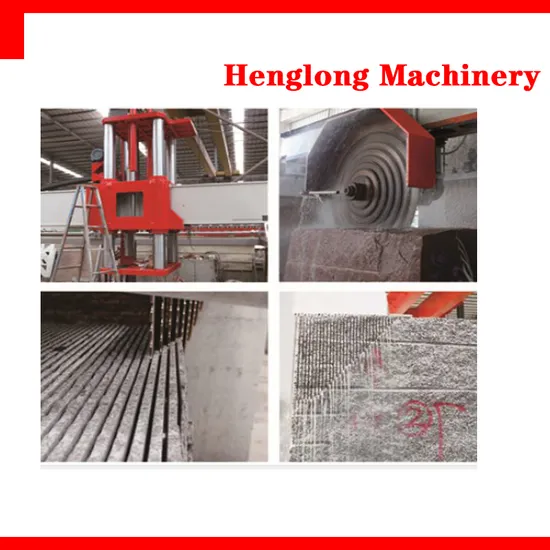

Product Description
Product description:
This machine uses inverter to control left-right feeding ,adjusts speed according to the stone material.
It uses hydraulic lifting system,combination of Chrome-plated guide pin and wear guide bush ,with small gap,wearable,beautiful structure,and Guide Sleeve with multi-layer seals.with waterproof,dustproof,anti-spill,improving the service life.
Forward - backward slicing uses high-precision screw nut driving ,automatic slicing ,main spare parts adopt imported good-quality materials;the block can be placed on the ground directly to economize the worktable and its maintenance costs .
Thus the whole machine is featured with high cutting effciency ,high slicing precision ,flatness of plate after cutting ,high stability,easy-operating to suit granite and marble block with high value.
Technical Parameters:
