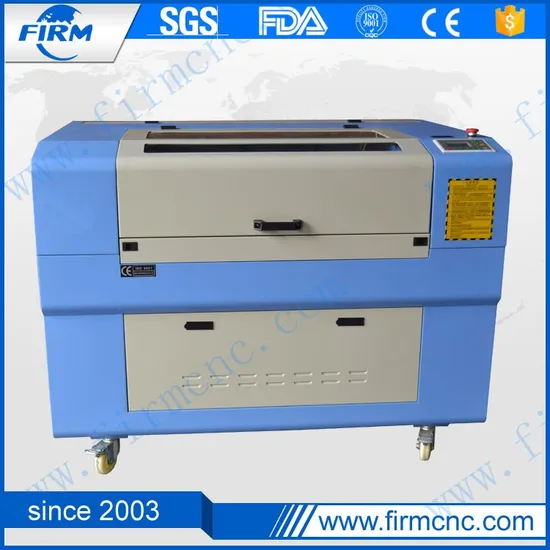

Good Quality 6090 CO2 Laser Engraving Machine

Product Description

Good quality 6090 CO2 Laser Engraving and Cutting Machine
Available Materials
1. Advertisement material, such as acrylic engraving and cutting, plastic engraving and cutting, PVC board engraving and cutting,
rubber plate engraving, seal engraving, organic glass engraving, plexiglass engraving, marble engraving, granite engraving,
Gum engraving, EVA materials engraving, paper engraving and cutting.
2. Wood material: wood engraving and cutting, MDF engraving, plywood cutting, bamboo engraving.
3. Garment material: leather engraving and cutting, textile engraving, fabric engraving, cloth engraving, shoe engraving,
jeans engraving, carpet engraving and cutting, toy cutting, woolen cutting, denim engraving and cutting.

Features
1.New design, High quality with competitive price.
2.Red light positioning, help find the work point, protect workers and improve work efficiency.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube,
Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
10. Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
11. Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.

Technical specification

Model	FMJ6090
Working area	900*600mm
Laser tube power	60W 80W 100W 120W 130W 150W
Laser Type	CO2 sealed laser tube
Engraving Speed	0-64000mm/min
Cutting Speed	0-36000mm/min
Resetting positioning accuracy	≤±0.01mm
Laser Output	1-100% software setting
Cooling mode	Circulating-water-cooling and protection system
Machine control and drive	Speedy DSP controlling, stepper motor
Cutting Platform	knife-strip platform
Min. shaping character	Character2.0mm×2.0mm,English1.0mm×1.0mm
Power Supply	AC220V 50HZ
Operating system	DSP off-line control system
Dictate format	*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc.
Operating Temperature	5°C-40°C
Operating Humidity	5-95%(Free of Condensed Water)
Compatible Software	CorelDraw ,AutoCAD transmit directly
Optional Spare Parts	Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump
Recommended Spare Parts	Laser Tube

Main parts of mini laser engraving machine
Ruida control panel (optional Leetro control)
RECI co2 laser tube
