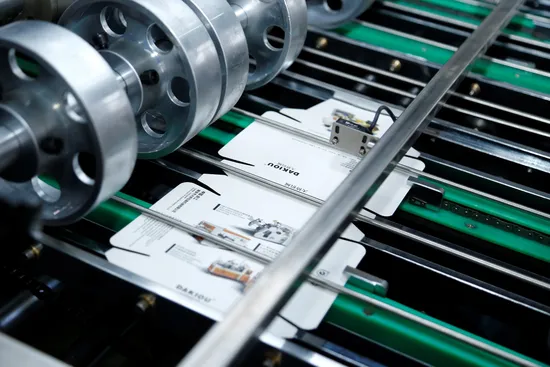

Paper Food Containers Forming Machine
| US$35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HBJ-D
Required Paper
Single Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE
Customized
Customized
Condition
New
Productivity
60-160 Piece/Miunte
Material
200-600G/M
Corrugating Paper
1.5mm
Total Power
5.5kw
Carton Size L
100-450mm
Degree
5-40
Width B
100-580mm
Hight H
15-200mm
Packing Size
2950*1320*1500mm
Weight
2.2t
Transport Package
Wooden Box
Specification
ISO, CE
Trademark
DAKIOU
Origin
China
HS Code
8441809000
Production Capacity
50set/Month
Product Description
Paper food containers forming machine:It is an ideal equipment to produce paper box such like hamburger box, chips box. Fried chicken box, kids meal box, etc.
Automatic Carton Erecting Machine with firm structure, high quality, low noise and high efficiency.
It has paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.
Technical specifications:
| TYPE | HBJ-D800 | HBJ-D1200 |
| Productivity | 60-160pcs/min | 120-300pcs/min |
| Material | 200-600gsm | 200-600gsm |
| Power Source | 380V50Hz | 380V50Hz |
| Total Power | 5.5KW | 5.5KW |
| Box Length | 100-450mm | 100-450mm |
| Box Width | 100-600mm | 100-385mm |
| Packing Size | 3600*1500*1700mm | 3600*1850*1700mm |
| Weight | 2.2T | 2.8T |
Carton Erecting Machine(single head)
The paper box made by this machine can be used in packing of KFC and Mcdonald. S or other
Erecting Machine(single head) Hamburger Press printing machine
Carton Erecting Machine(single head)
The paper box made by this machine can be used in packing of KFC and Mcdonald s or other food
2. Work principle:
The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chain and the sends it to the shaping mold, during the procedure, the cardboard has been glued an you can adjust the position of the gluing, the volume of gluing can be measured while in progress withour stopping word. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark withouot stopping production, structure: Control unit, paper feeding unit, paper transfer unit, glue spreading unit, forming unit, collecting unit.
