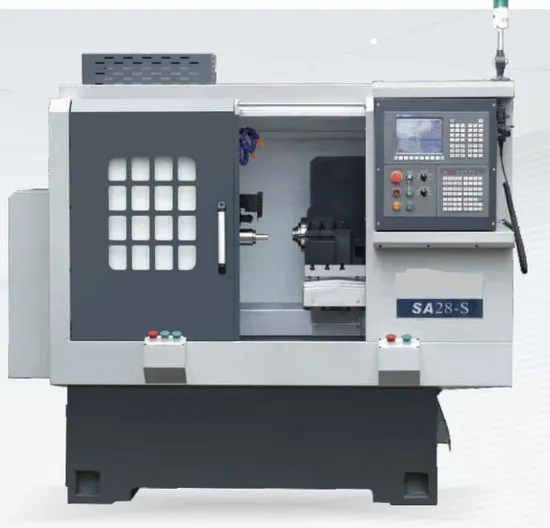

CNC Turning Center Machine with Dual-Spindle Automation
| US$8,500.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SA28-S
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
SMD
40mm
Rapid Tranverse
15m/Min
Mrd
28mm
X Axis Travel
350mm
Y Axis Travel
80mm
Z Axis Travel
200mm
Transport Package
Pallet
Origin
China
HS Code
8458110090
Production Capacity
10 Units Per Month
Product Description
CNC turning center machine dual-spindle automation SA28-S Meet the new low cost option for dual-spindle machining. Advantages of dual-spindle/turret machining centers include:One machine is cheaper than two
More accurate when a machining process is accomplished on a single machine, rather than moving the part from machine to machine.
Lower labor cost due to reduced set-up requirements.
In the past, the problem with dual-spindle machines has been the price-too high to justify.
Mingwen has now introduced the SA28-S Dual-spindle Turning Center. This high quality machine has the capabilities of traditional dual-spindle machines - at a much lower price tag. Finally, here is an automation option you can use - and price justify.
Specifications
Standard machining dia.: 40mm
Max. rod dia. 28mm
X axis travel: 350mm
Z axis travel: 200mm
Y axis travel: 80mm
X/Z rapid traverse: 15/15m/min
Spindle bore: 37mm/48mm
Spindle bar capacity: 28mm/40mm
Spindle speed: 3000rpm
Spindle chuck/collet: Hydraulic collet
Spindle turret type: Gang type tools, 8-station turret
Spindle motor power:3.7/5.5kW
Spindle type: 68mm
Spindle taper: 39°/42°
Dimension(L x W x H): 1990x1480x1830mm
Weight: 1900kgs
| CNC turning center machine dual-spindle automation SA28-S | ||
| Meet the new low cost option for dual-spindle machining. Advantages of dual-spindle/turret machining centers include: | ||
| One machine is cheaper than two | ||
| More accurate when a machining process is accomplished on a single machine, rather than moving the part from machine to machine. | ||
| Lower labor cost due to reduced set-up requirements. | ||
| In the past, the problem with dual-spindle machines has been the price-too high to justify. | ||
| Mingwen has now introduced the SA28-S Dual-spindle Turning Center. This high quality machine has the capabilities of traditional dual-spindle machines - at a much lower price tag. Finally, here is an automation option you can use - and price justify. | ||
| Specifications | ||
| Standard machining dia.: 40mm | ||
| Max. rod dia. 28mm | ||
| X axis travel: 350mm | ||
| Z axis travel: 200mm | ||
| Y axis travel: 80mm | ||
| X/Z rapid traverse: 15/15m/min | ||
| Spindle bore: 37mm/48mm | ||
| Spindle bar capacity: 28mm/40mm | ||
| Spindle speed: 3000rpm | ||
| Spindle chuck/collet: Hydraulic collet | ||
| Spindle turret type: Gang type tools, 8-station turret | ||
| Spindle motor power:3.7/5.5kW | ||
| Spindle type: 68mm | ||
| Spindle taper: 39°/42° | ||
| Dimension(L x W x H): 1990x1480x1830mm | ||
| Weight: 1900kgs | ||
