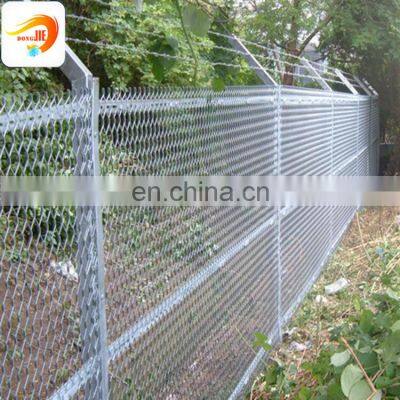

PVC Galvanized Expanded metal mesh fence

Product Description

Product Description
----We offer the most comprehensive range of expanded metal mesh worldwide!

1. Aerospace & Composites ------------------------------------ Renowned for its strength and durability, yet inherent lightweight design.	2. Architectural Design ------------------------------ Expanded metal has long been admired by architects and designers for its compelling aesthetics.	3. Automotive -------------------- As the industry continues to face growing pressure to reduce vehicle weight and emissions, we apply our expertise.
4. Building & Construction ------------------------------------ For more than 125 years, we have proudly supported the construction trade and recognized as the new standard in metal lath and concrete reinforcement.	5. Filtration & Acoustics -------------------------------- As supplier to the global filtration and acoustics, we continue to lead and innovate in the manufacture of specialist mesh products.	6. Security & Defence ---------------------------- Renowned for its strength and durability, expanded metal is used extensively within high security applications.

----The dependable perimeter security for education authorities

The dependable perimeter security for education authorities Security has always been a high priority for schools and colleges, many are choosing to install fencing to protect both children and property. In response, we have developed Primary, a substantially more secure, yet cost effective alternative. Designed around RHS posts with no potentially dangerous protruding bolts, Primary is safe for both children and the general public.

Features & Benefits • Safety conscious design with no protruding bolts • Aesthetically pleasing • Suitable for sloping ground without stepping • Medium to high security system • Police preferred specification

Sports Village, Middlesbrough, Outdoor Activity Security, Infant School Perimeter
Technical Spec

Height above ground	Post centres	Post size&Type	No. of stringers required
1.8m	3000mm	60 x 40x 3mmRHS	3
2.4m	3000mm	80 x 40 x 3mmRHS	3

Fittings

Base Plate	Buried	Sloping	Restricted access	Anti-scaling option
√	√	√	√	√

----The solution to your infrastructure security

Electra has been specifically designed for the electric and telecom industries, particularly for sub-station protection, where security is important. Deterring both trespass and vandalism whilst safeguarding the public. It is difficult to penetrate and can be combined with a security topping to prevent scaling. Optional features such as low cost gravel boards and a reduction in fixings allows maximum security at minimum cost.

Features & Benefits • Specifically designed and developed with the electric and telecoms industry • Deters trespassing and vandalism • Smaller post sizes make this an ideal fencing system for small compounds • Available with a front face fix option for easy installation where access to the back of the fence is restricted

Site Security, Electra Substation Gate, Transformer Protection
Technical Spec

Height above ground	Post centres	Post size&type	No. of stringers required
1.8m	Dependent upon mesh	50 x 50 x 3mmSHS	3
Other non-stock heights available upon request.

----The original parallel strand high security fencing

The complete DONGJIE™ Super Security fencing system is one of the highest levels of security available on the market and has an exclusively profiled mesh pattern that prevents conventional cutting tools being used as the gaps are too small to get tools or blades through.

Features & Benefits • DONGJIE™ Super Security is the superior alternative to welded mesh, with no joins or welds • The design of the mesh makes it extremely difficult to cut and climb • Can be used on undulating ground and slopes • Exclusive mesh design eliminates the need for stringers • Non-conductive transformer protection

Perimeter machine guarding, High value exterior site equipment, Unique design deters climbing and cutting
Technical Spec

Height above ground	Post centres	Post size&type	No. of stringers required
2.4m and upwards	2400mm	Dependent upon mesh	0

----The economical upgrade for use on existing posts

An ideal fencing system solution where costs and access are restricted. DONGJIE™ Fixafence is a mesh that clamps onto existing fence posts making it a versatile and economical system for sites that require a convenient and low cost replacement fence or upgrade. *Designed to suit application

Features & Benefits • Designed to be installed on existing or new concrete and metal posts • Accommodates most types of existing post • Patented clamp design • A higher security replacement for existing woven wire systems

Unique clamping system for new or existing posts, Trackside refurbishment on existing posts, Handles sloping curves easily.
Technical Spec

Height above ground	Post centres	Post size&type	No. of stringers required
1.8m	3000mm	Fixes to existing	3
2.1m	3000mm	Fixes to existing	3
2.4m	3000m	Fixes to existing	3

----The versatile target hardening solution

Our system has been developed as a discreet method to target harden the most critical of areas, significantly delaying determined intruders from creating an aperture large enough to gain entry to your premises. System is a versatile material which can be easily fitted during construction or retro-fit, ideally situated within internal and external walls, ceilings, roofs and windows.

Features & Benefits • ISO tested and accredited • Available in DJ Mesh SR1, SR2 and SR3 options • Cost effective and easy to install • Suitable for both render and plaster finishes • Adopted worldwide by financial institutes, retailers and high-risk sites

High security plasterboard installation, Internal high security stock room, Internal plywood wall
Technical Spec

PRODUCT	RECOMMENDED USE	CERTIFICATION
DJ MESH SR1	A lightweight option for security in walls, partitions, ceilings and roofs.	19mm Plywood face
DJ MESH SR2	A heavyweight option for security in walls, partitions and ceilings.	19mm Plywood face. 12mm Plasterboard face.
DJ MESH RS3	Double skinned option for additional security in walls, partitions and ceilings.	Mesh fitted to both sides with 19mm Plywood faces.

Features & Benefits of Expanded Metal
Expanded metal mesh has a diverse range of properties, which makes it so versatile and appealing for many uses and applications throughout a variety of industries. From our aluminium foils measuring just 50 microns thick, through to our heavy duty 6mm thick walkway range, we offer a class leading range of choice.
Formed from One Piece of Material
Nothing to work loose, no fretting strands or strained joins or welds. This makes expanded mesh ideal for forming and beneficial to further processing such as pressing and shearing. The strength of mesh makes it valuable for use in multiple components.
Minimum Waste
Our process involves slitting and stretching material to create holes rather than punching it out. This provides immediate cost savings, especially when compared to other metal processing methods. For example, when perforating metals, all of the holes you see are wasted and must be paid for by you.
Strength to Weight Ratio
By expanding metal from its solid sheet form additional strength is added. The uncut knuckles of expanded mesh withstand stress better than welds or joints. This makes expanded metal an ideal light weighting solution whilst also maintaining strength.
Aesthetics
Taking a sample of our mesh and looking through at various angles best illustrates the visual properties of expanded metal meshes. Favoured by designers and architects for an array of cladding, screening and interior features, our product is available in a wide array of colours, materials and designs.
Highly Efficient
Electricity, magnetic flux and heat can all flow through expanded metal mesh, as there is a continuous connection throughout each sheet. There are no breaks or welds because the mesh has been formed from a single piece of metal.
Anti-slip
The knuckles formed by expanding mesh give sound grip underfoot, particularly beneficial when used in stair treads, ramps and walkways. We have also developed a range of specific anti-slip walkway meshes.
DONGJIE EXPANDED

Established in 1889, The Expanded Metal Company is a market leading manufacturer in the production of expanded metal mesh and security fencing systems. Our DONGJIE™ Security Product range is designed and manufactured on our purpose built 24,000m2 site, situated in Anping, China. Specifically developed for a range of applications from simple perimeter demarcation to the highest levels of security, our range caters to the most diverse of requirements. Having worked extensively with our clients across sectors such as rail, utilities, schools, retail and local authorities, we understand the unique challenges you face and have individually tailored our systems to meet the most exacting of needs. Due to the inherent strength of expanded metal, our systems have been specified to target harden the most critical of sites, including airports, financial institutions, prisons and military property.
