Tck46A Slant Bed GSK CNC Controller CNC Metal Lathe Machine

Product Description

TCK46A Slant Bed GSK CNC Controller CNC Metal Lathe Machine

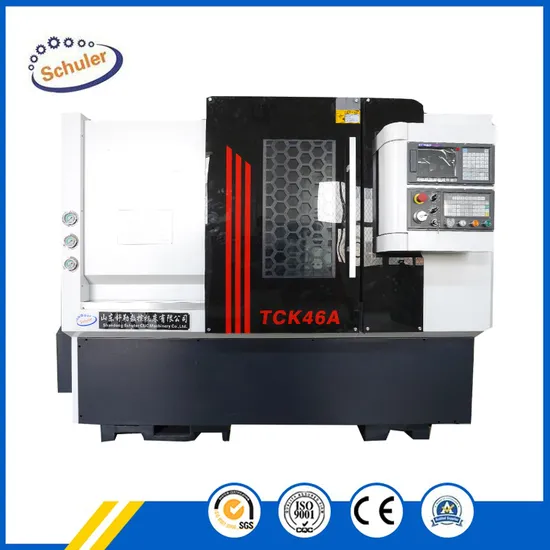

Product Picture:
CNC Lathe Application
The Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, military and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
CNC Lathe Features
Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A
1.45 degree slant bed cnc lathe
2.High accuracy Taiwan linear guideways
3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.
5.The first one is suitable for bearing and gear processing .
6.The second type is suitable for high speed and jhigh precision processing.
7.Customers could choose any type of them
8.Screw pre-stretching structure
9.Gang type tool post
10.Optional turret
CNC Lathe Technical Parameter:

Specification	Units	TCK46A
Max.swing over bed	mm	460
Max.swing over cross slide	mm	170
Max.turning length	mm	350
Spindle unit	mm	Ø170
Spindle nose(optinal chuck)		A2-5/A2-6
Spindle motor power	kw	5.5
Max.spindle speed	rpm	3500
Spindle bore	mm	Ø56
X/Y axis lead screw specification		3210/3210
X axis limit Travel	mm	240
Z axis limit Travel	mm	400
X axis motor torque	N.m	7.5
Z axis motor torque	N.m	7.5
X/Z axis repeatability	mm	0.003
Tailstock bore	mm	65
Tailstock quill travel	mm	80
Tailstock travel	mm	200
Tailstock taper		MT4
The bed form and inclination	°	One -piece casting/30°
Machine dimensions(L*W*H)	mm	2500*1700*1710
Weight	kg	2600

CNC Lathe Details Picture:
Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A with details as follows
CNC Lathe Precision Body:
CNC Lateh In the Workshop:
CNC Lathe Package Delivry:
Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK46A with standard export package
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Comapny:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
