High Precision CNC Vertical Milling Machine with Siemens Controller F80PRO Maxnovo

Product Description

MM-F80PRO - High Precision CNC Vertical Milling Machine with Siemens Controller - MAXNOVO MACHINE

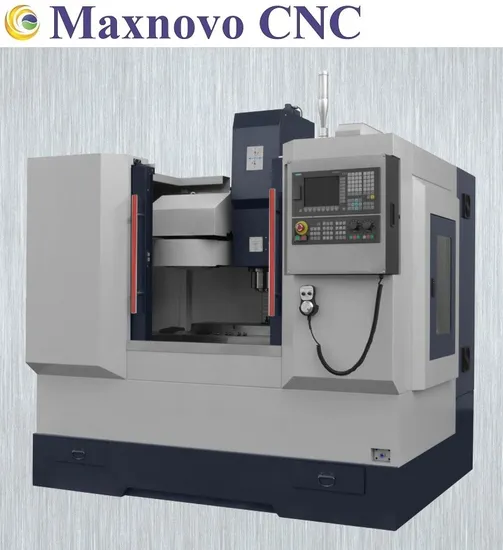

This kind of MM-F80 PRO is the high precision CNC Milling Vertical Machining Center with Linear Guide-ways and SIEMENS 808D advanced CNC Control System which is been made in ISO9001 factory with CE Safety Certification.
Product Description

Solid Design, Compact CNC Vertical Milling Machining Center with SIEMENS SINUMERIK Controls For Small Batch Productions
Main Feature :
Convincing Arguments: Quality, Efficiency and Price --Rigid Construction For Efficient and Reliability Machining
--High Precision Linear Guide-ways for 3-Axis (X/Y/Z-axis)
--Powerful SERVO-Drives Ensure High Feed Dynamics in all 3-axes (X/Y/Z-axis)
--Maximum Spindle Speed up to 8000 RPM
--Solid Precision Milling Table, Generously dimensioned with Precision Surface Finish
--Machine enclosure with sliding door for easy access
--Stable cast frame in rigid bed construction for smooth running and best milling performance
--Carousel Type Automatic Tool Changer with 12-stations
--Machine Lamp in the Work Space
--Powerful Central Lubrication and Coolant System
--Portable Electronic Hand-wheel
--Machine with Cast Stand Design for Good Stiffness Values
--CE Electrics ensures more Safe
--Precision 4th-Axis Rotary Table is optional
--FANUC and SIEMENS 828D CNC Control System is optional
--Certificate of Original (CO, FORM A, FORM E, FORM F)

Product Parameters

Technical Data :

Product Name :	High Precision CNC Vertical Machining Center
Product Item :	MM-F80 PRO
Guide-way Type :	Linear Guide-ways for Three Axis (X/Y/Z-axis)
Control System :	Siemens 808D Advanced CNC Control System
Machine Data
Table Dimensions :	800 X 260 mm
Table Load Capacity :	200 KGS
Spindle Taper :	BT40
Spindle Speed :	8000 RPM
T-slots (number / width / distance ) :	3 piece X 14 mm X 80 mm
Spindle nose-to-Table surface distance :	90 - 520 mm
Spindle axis to Column surface distance :	360 mm
Travels
Max Travel (X / Y / Z-axis ) :	450 / 320 / 420 mm
Motor Torque (X / Y / Z-axis) :	6 Nm / 6 Nm / 7 Nm
Feed
Rapid Feed (X / Y / Z-axis) :	15000 / 15000 / 15000 mm /min
Cutting Feed (X / Y / Z-axis) :	1 - 6000 mm / min
Precision
Positioning Accuracies :	± 0.008 mm
Repeat Positioning Accuracies :	± 0.006 mm
Tool Changer
Tool Magazine Type :	Umbrella Type
Number of Tool Stations :	12 tools
Max. Tool Weight :	8 KGS
Max. Tool Diameter :	Ø 130 mm
Max. Tool Length :	300 mm
Tool Change Time :	12 seconds
Drive Capacity
Connect Voltage :	Three Phase 400V voltage
Main Motor :	3700W
Gross Weight :	2680 KGS
Packing Size :	2280 X 1980 X 2200 mm
Standard Accessory :	Siemens CNC Control System, Full Protection, Tool Magazine, Lubrication System, Coolant system, Working Lamp, Alarm Light, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision CNC Machining Center for Demanding Users !
FAQ :
1. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


3. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 1-- 2 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.
