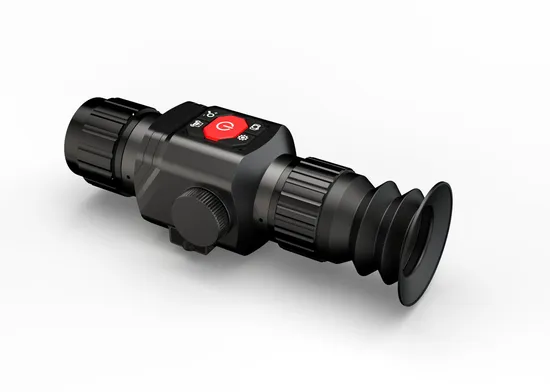

Handheld Uncooled Thermal Imaging Scope

Product Description

Product Description Key Features
♦ 384x288 uncooled microbolometer infrared focal plane arrays
♦ High sensitivity, 25Hz
♦ Auto adjust brightness and contrast, manual nonuniformity correction
♦ Low power consumption, quick start-up, stable performance, image with high uniformity
♦ Dynamic Detail Enhancer (DDE) function; output white hot/black hot
♦ High-resolution OLED display
♦ Key Control, operate easily and fast
♦ Rechargeable lithium battery.high battery endurance ability
♦ Shock and vibration resistance structure
♦ Divisional instructions and propriety of the range-measurement function, can achieve long and short-distance object aiming
Product Parameters

Model	SHR-PHLIR-325	SHR-PHLIR-335	SHR-PHLIR-354	SHR-PHLIR-375
Detector type	Uncooled focal plane array, 384×288
OLED resolution	1024×768
Focal length	25mm	35mm	54mm	75mm
Eyepiece	Single-eyepiece display (refraction adjustable and calibrated).
FOV	14.9°×11.2°	10.7°×8.0°	6.9°×5.2°	5.0°×3.7°
Digital zoom	2×; 4×;8× ; 16×
Wavelength	8~14μm
Frame rate	50Hz
Color palette	6 types of color palette, Rainbow, Hot Metal, White Hot, Black Hot, Yellow saturated, bird watching mode
Hot spot tracking	Hotspot tracking indicator on/off, automatic tracking of multiple hotspot targets
Cross cursor	7 types of cross cursor on/off, arbitrary change of different cursor, accurate location of the target
Target distance	Human detection:1667 m, recognition: 471 m Vehicle detection: 2501 m, identification: 626 m	Human detection: 2334 m, recognition: 584 m Vehicle detection: 3501 m, identification: 876 m	Human detection: 2850 m, recognition: 985 m Vehicle detection: 3960 m, identification: 1280 m	Human detection: 3150 m, recognition: 1390 m Vehicle detection: 4300 m, identification: 1680 m
Image processing	Non-uniformity correction, image smoothing function, image details enhancement, digital filtering noise reduction
Image adjustment	5 image edge adjustment (0-4), or 5 image detail adjustment (0-4), brightness, contrast adjustable
Battery	Built-in chargeable batteries, 18500 lithium battery, 2040mAH, working time 6 hours
Storage	16G
USB	Type-C
Automatic shutdown	40 minutes
Power consumption	1W
Impact resistant	800G IEC68-2-29
Weight	480g	500g	550g	630g
Product size	180×72×62mm	212.4×64×64mm	212.4×64×71.7mm	236.7×86.5×86mm
Protection grade	IP66
Temperature	Working: -25ºC ~ +45ºC; Storage: -25ºC ~ +60ºC

Detailed Photos Effect Demo

Packaging & Shipping
>>> PackageStandard Wooden or Carton cases >>> Delivery 7-20 days after the order is confirmed, delivery details should be decided according to production season and order quantity.
