Both Rotary and DTH Drill/Drilling Rig for Water Well

Product Description

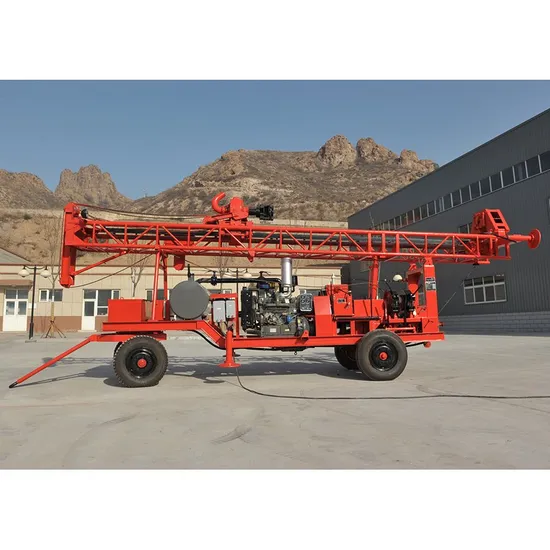

GL-IIA Both Rotary And DTH Drilling Rig for Water Well
Product Description
Technical Parameter

Drilling Parameter
Hole diameter :	90-1200(mm)
Hole depth :	250(m)
Run Of Rod :	3,4(m)
Drill rod diameter :	φ73 φ89 φ95 φ133(mm)
Drilling Technology :	Normal and Reverse Circulation for both Mud and Air
Down‐The‐Hole hammers:	Middle‐High‐Pressure Air
Performance Parameter
Drill Head Inside Diameter :	φ80 φ120
Drill Head lifting speed(m/s) :	0.37 0.16
Drill Head lifting Force(kN) :	45.4 105
Drill Head Spin Speed:	A(Forward:14-23-52-84,Reverse:8-13-29-47r/min)
	B(Forward:32-52-116-188,Reverse:18-29-65-106r/min)
Shape Parameters
Dimensions:	(L-W-H) Working conditions 5300×2000×7200(mm)
Transport status:	(L-W-H) 7900×2000×3000(mm)
Supporting Form :	Mechanical Screw
Mast Up‐Down :	Hydraulic Type
Rig mass:	3800(Kg)
Chassis :	Trailer with four wheels
Power Unit :	Diesel Engine
Power:	49(kW)
Mud pump :	LBN-20 Normal and Reverse Circulation Pump Group
Flow(m³/h) :	80
Main Hoist Lifting Force:	20.6(kN)
Auxiliary Hoist Lifting Force:	0-15(kN)
Notes: Drill head spin speed can be selected, A is normal

Pictures Main Application of GL-IIA Water Well Drilling Rig > Drilling wells for urban and rural life > Drilling wells for agricultural irrigation and industries > Drilling for geotechnical survey > Drilling construction engineering holes > Drilling geothermal pump wells
Related Products of GL-IIA Water Well Drilling Rig
Company Profile Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Exhibition
Certifications
Customer Photos
After-sale Warranty
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
