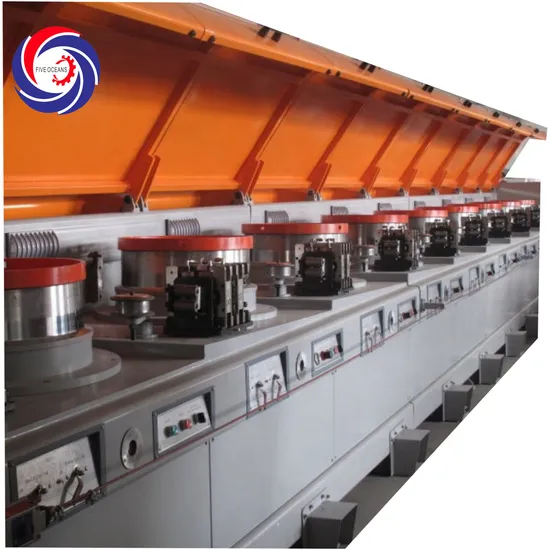

Low Carbon Steel Metals Wire Drawing Machine for Making Nails

Product Description

LZ-560 Wire Drawing Machine Specification

Capstan diameter	560mm
Capstan number	11
Inlet wire diameter	Φ6.0mm-Φ8.0mm
Outlet wire diameter	Φ2.0mm-Φ3.0mm
Tensile strength	≤600mpa
Total compressibility	90.53%
Average compressibility	25.52%
Max. Speed	12 m/s
Power	22 KW*11 (Frequency conversion motor )+22KW*11(inverter)
Mold size	Φ40mm×25
Block type	Vertical ,tilted
Take-up wire	Elephant trunk type take-up system
Die box	The mould box is composed of mixer and water cooling(4 set)
Drawing drum	Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60. Surface roughness less than 0.8mm.
Mold box cooling	The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good.
Tension frame	Internal tension frame.
Main frame	Welding of steel plate and square pipe.
Stop brake	Pneumatic brake
Vacuuming design	Reserve suction hole
Lighting	Each stand with separate lighting.
PLC	Siemens
Touch screen	Siemens
Low voltage electrical appliances	Delixi

Product Details
Packaging & Shipping

Main Features
1) Easy in installation and maintation. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Running in a high automatization and intellectualization,no pollution 4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing. 5)Good cooling system, final wire quality is very good.
After-sales And Warranty
1. Warranty period: 1 year or 2000 working hours2. Pay attention to the warranty scope3. If the customer reports a quality problem, the following information must be provided:1) Please verify the working time of the whole machine (nameplate photo, instrument photo)2) Make a clear statement or cause analysis of the failure of the component (provide working environment, pictures, videos)3) Give us feedback as soon as possible
FAQ
Q1:1:What is your minimum order quantity?----1unit, customized service is availableQ2:How Long for lead time ?----If the parts are in stock, it is usually delivered within 10 working days. Other customized styles take about 20 working days. It depends on the customer's requirements for the forkliftQ3:How long is your warranty period?---1 year or 2000 working hoursQ4: What payment terms do you accept?---1) T/T 30% in advance as deposit,70% before loading---2) T/T30% as deposit ,40% after inspection forklift ,30% before loading ----3) T/T20% as deposit ,50% after inspection forklift ,30% against BL copyQ5:How about the shipping term ?---1)LCL By Sea---2)20GP/40HQ/45FT---3)By Bulk Cargo
