High Quality Machinery Rubber Corner Joint Vulcanizing Injection Machine Hot Selling 20-50tons

Product Description

Product Description Rubber Angle machine principle, accurate rubber material and high temperature vulcanization! The machine adopts a "C" frame structure, mainly composed of pre-molding, injection, opening and closing mold and other mechanisms, with the corresponding hydraulic system, heating system, P.L.C programmable control system to complete the rubber injection model process on the specific requirements of the product. The machine has the advantages of compact structure, reasonable layout, large clamping force, fast injection speed, uniform heating and accurate feeding. Suitable for the production of natural rubber, synthetic rubber, recycled rubber and other rubber model products, is the best choice for all kinds of sealing strip joints or joints.
Automotive sealing strip Angle machine: Machine features:
The "C" frame on both sides of the full open mode-locking structure and no flow channel all in all out injection device, no check valve, more accurate measurement; The production process does not produce aging glue, does not need to hit the head, more material saving, more efficient. It is the best production equipment for all kinds of sealing strip interfaces or angles.

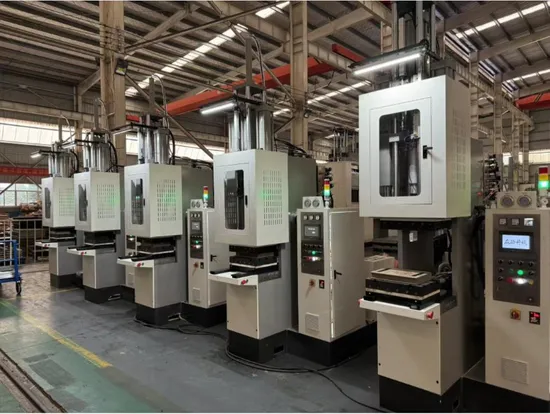

Detailed Photos
Product Parameters

Type	ZJJ-20T	ZJJ-30T	ZJJ-50T
Clamping force (Ton)	20	30	50
Heating plate dimension (mm)	300*300	300*400	450*450
Opening stroke (mm)	250	300	350
Injection volumn (cc)	50	160	300
Minimum mold thickness(mm)	60	60	60
Total power (kw)	13	20	20.5
Machine size (m) (L*W*H)	1.5*1.2*2.4	1.8*1*2.7	2*1*2.9
Whole weight (Ton)	2	3	5

Packaging & Shipping
Company Profile Rubber Angle machine principle, accurate rubber material and high temperature vulcanization! The machine adopts a "C" frame structure, mainly composed of pre-molding, injection, opening and closing mold and other mechanisms, with the corresponding hydraulic system, heating system, P.L.C programmable control system to complete the rubber injection model process on the specific requirements of the product. The machine has the advantages of compact structure, reasonable layout, large clamping force, fast injection speed, uniform heating and accurate feeding. Suitable for the production of natural rubber, synthetic rubber, recycled rubber and other rubber model products, is the best choice for all kinds of sealing strip joints or joints.
The qualified rate of the finished product is almost perfect, the raw edge is less and uniform, suitable for a variety of sophisticated and complex finished products, and the best choice for the pursuit of high quality in today's industry.
Apply for :Multilateral, multi-angle and other complex finished products, especially sports goods, medical supplies, automotive supplies, electronic supplies and other precision applications.
Applicable material
Natural rubber, oil resistant rubber, rubber mixture, synthetic rubber, medical mixture, heat resistant rubber silicone injection machine, solid silicone
Apply for
This machine is suitable for natural rubber, synthetic rubber, recycled rubber, high temperature rubber, oil resistant rubber and other rubber products
Hunan Zhongjun Technology Co., Ltd is located in Yue yang city, Hunan province, China, covers an area of 100000 square meters. Our company was established since 1993 and founded by a group of professional engineers who are well experience in rubber & silicone machinery manufacturing. To meet our customers' requirements, we have been adhering to design innovation, quality first and also provide custom made service.warmly welcome to visit our factory !

After Sales Service
1-Quality guarantee period:Within 12 months,During this period,if there are troubles with machines,the manufacturer should send engineers to repair or replace the spare part if needed.
2-According to demand of buyer,the supplier send engineers to guide the install and the debug.But the buyer should undertake all cost,such as ticket,food,hotel for supplier,also they need pay 200 USD for engineer one day.
3-For the damage caused by the buyer,supplier provides the spare part and repair it with the best price.
4-If machine is broken up due to the not correct of the buyer within the one year period,supplier can send engineers if need to assist buyer,but buyer should undertake all the cost.
5-Within one year guarantee period,if machine broken down due to its quality itself,supplier should solve this for buyer with its cost.
6-Two parties can discuss other items which are not mentioned in this place.

FAQ Q1: Where is your factory located?
A1: Hunan Zhongjun Technology Co.,LTD is located at Jinlong High-tech industrial zone ,Yueyang City ,Hunan Province, China

Q2: Are you an integrated supplier for rubber machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: Zhongjun has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 48 to 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also. Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 20-50 days.
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, Zhongjun will provide one set standard spare parts to customer according to different machines.
