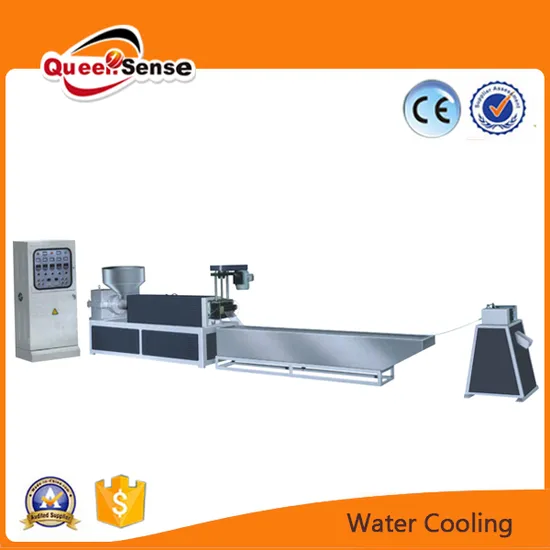

Water Cooling Single Screw Extrution PE Plastic Recycling Machine
| US$6,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJ-B90/100/110/120
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
QS, GMP
Screw Diameter
90mm/100/110/120
Screw Speed
10-110r/Min
Main Motor Power
22kw
Total Weight
2000kg
Transport Package
Wooden Box
Specification
CE
Trademark
QUEENSENSE
Origin
Wenzhou China
HS Code
8477201000
Production Capacity
1000PCS/Year
Product Description
This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller. Characteristics: Main Technical VariablesMain Technical Variables:
Model | SJ-A90 | SJ-A100 | SJ-A110 | SJ-A120 |
| Type Diameter of Screw Stem | φ90 | φ100 | φ110 | φ120 |
| Major Diameter Ratio of Screw Stem (L/D) | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 | L/D 20:1 -22:1 |
| Rational Speed of Screw Stem | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Main Motor Power | 22kw | 30kw | 37kw | 45kw |
| Output | 68kg/h | 95kg/h | 120kg/h | 135kg/h |
| Weight of overall(kg) | 2600kg | 2800kg | 3000kg | 3200kg |
| Cover dimensions (l×w×h) (mm) | 4000×1500×1800 | 4000×1500×1800 | 4000×1500×1800 | 4600×1500×1800 |
