6kv 600kVA Complete Set of High-Voltage Reactive Power Capacitor Compensation Device TBB for Automobile Manufacturing
| US$1,000.00-600,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
tbb
Packaging Type
Surface Mount
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Usage
High Frequency Coupling, Filter, High Frequency Bypass
Tuning
Polystyrene Capacitor
Filter
Shunt Capacitor
Rated Voltage
6 ~ 35kv
Rated Capacity
100 ~ 20000kvar
Wiring Mode
Triangle, Single Star and Double Star
Transport Package
Wooden
Specification
optional
Trademark
wenlida
Origin
China
HS Code
85044019
Production Capacity
20000PCS/M
Product Description

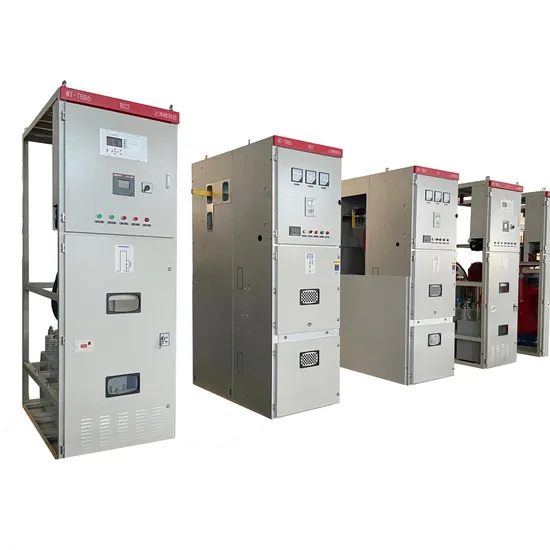

PRODUCT INTRODUCTION:WT-TBB high voltage shunt capacitor complete set device is mainly used for reactive power compensation of 6kV, 10kV, 35kV Power frequency power systems, improve power factor, improve voltage quality, reduce line loss, and give full play to the efficiency of power generation and power supply equipment. The device is composed of high-voltage switch cabinet (including high-voltage circuit breaker, disconnector, current transformer, relay protection, measurement indication part, etc.), series reactor, zinc oxide arrester and its recorder, discharge coil, isolating switch, vacuum contactor, shunt capacitor, special fuse breaker, post insulator, busbar, cabinet, fence and galvanized steel frame, etc.
MODEL DESCRIPTION:
MODEL REFERENCE TABLE:
| Cabinet type shunt capacitor device | |||||||
| Type | Voltage (KV) | Total capacity (KVA) | Unit capacity (KVA) | Reactance rate (%) | Cabinet size (mm) | Number of cabinets | Wiring mode |
| TBB6-100/34-AK | 6 | 100 | 34 | 6 | 900*1500*2500 | 1 | Y |
| TBB6-800/134-AK | 6 | 800 | 134 | 6 | 1200*1500*2500 | 2 | Y |
| TBB6-1500/167-AK | 6 | 1500 | 167 | 6 | 1200*1500*2500 | 3 | Y |
| TBB6-1800/200-AK | 6 | 1800 | 200 | 6 | 1200*1500*2500 | 3 | Y |
| TBB6-3000/334-AK | 6 | 3000 | 334 | 6 | 1200*1500*2500 | 3 | Y |
| TBB6-4800/400-AK | 6 | 4800 | 400 | 6 | 1200*1500*2500 | 4 | Y |
| TBB6-6000/250-AK | 6 | 6000 | 250 | 6 | 1200*1500*2500 | 8 | Y |
| TBB10-100/34-AK | 10 | 100 | 34 | 6 | 1200*1500*2500 | 1 | Y |
| TBB10-800/134-AK | 10 | 800 | 134 | 6 | 1200*1500*2500 | 2 | Y |
| TBB10-1500/167-AK | 10 | 1500 | 167 | 6 | 1200*1500*2500 | 3 | Y |
| TBB10-1800/200-AK | 10 | 1800 | 200 | 6 | 1200*1500*2500 | 3 | Y |
| TBB10-3000/344-AK | 10 | 3000 | 344 | 6 | 1200*1500*2500 | 3 | Y |
| TBB10-4800/400-AK | 10 | 4800 | 400 | 6 | 1200*1500*2500 | 4 | Y |
| TBB10-6000/250-AK | 10 | 6000 | 250 | 6 | 1200*1500*2500 | 8 | Y |
| Frame type shunt capacitor device | ||||||
| Type | Voltage (KV) | Total capacity (KVA) | Unit capacity (KVA) | Reactance rate (%) | Cabinet size (mm) | Wiring mode |
| TBB6-600/100-AKW | 6 | 600 | 100 | 6 | 4748*2900 | Y |
| TBB6-900/100-AKW | 6 | 900 | 100 | 6 | 4748*2900 | Y |
| TBB10-4800/334-AKW | 10 | 4800 | 334 | 6 | 7000*4000 | Y |
| TBB10-3000/500-AKW | 10 | 3000 | 500 | 6 | 7000*4000 | Y |
| TBB10-6000/250-AKW | 10 | 6000 | 250 | 6 | 7000*4000 | Y |
| TBB35-6000/250-AKW | 35 | 6000 | 250 | 6 | 7500*7800 | Y |
| TBB35-10000/334-AKW | 35 | 10000 | 334 | 6 | 7500*7800 | Y |
TECHNICAL PARAMETER:
Rated voltage: 6 ~ 35kV
Rated capacity: 100 ~ 20000kvar
Wiring mode: triangle, single star and double star
Protection mode: Low voltage, over-voltage protection, time limit quick break, over-current, open delta protection, differential protection, unbalanced current protection, etc
CONDITIONS OF USE:
1) Ambient temperature: - 35 ºC - 55 ºC, the average temperature within 24 hours shall not exceed 35 ºC.
2) Relative humidity: no more than 90%.
3) Atmospheric pressure: 80-110kpa.
4) Altitude: ≤ 2000m.
5) Wind speed: ≤ 35m / s.
6) Installation location: indoor or outdoor
7) Environmental requirements: no explosive medium is allowed in the place of use, the surrounding medium shall not contain corrosive metal and insulating gas and conductive medium, water vapor and serious mould shall not be allowed; facilities shall be provided to prevent rain, snow, wind and sand.
