China Dongfeng 20tons Arm Hook Lift Garbage Truck 6X4 Truck Mounted 20ton Hook Lifting Truck Factory Direct Sale

Product Description

1. The brief introduction of Ampliroll hook lift garbage truck
1) The Hook Lift Garbage Truck, also known as the Roll-off Garbage Truck,detachable container garbage truck, or Hook arm Truck, is a highly efficient waste management vehicle. This specialized truck is designed to collect and transport garbage from residential and commercial areas
2) Equipped with a hydraulic hook lift system, the Hook Lift Garbage Truck offers a convenient and time-saving solution for waste disposal. The system allows for easy loading and unloading of waste containers, minimizing manual labor and increasing productivity. With its robust construction and powerful engine, the Hook Lift Garbage Truck is capable of handling heavy loads of waste. It is designed to withstand the rigors of daily use and ensure reliable performance in various weather conditions. The Hook Lift Garbage Truck plays a crucial role in maintaining cleanliness and hygiene in our communities
3) The hydraulic system: oil cylinder, pump, valve system was special designed by our company, pump and valve for international well-known factory production, reasonable matching, cost-effective; Oil cylinder for domestic famous factories, adopt import seal, stable performance, reliable quality
2. Safety protection charater
1) The main cylinder built-in two-way unloading valve, the end of the stroke to effectively reduce the system pressure to protect the entire hydraulic system and pull arm durable
2) Lift system configuration balance device, no load or heavy load
3) The hydraulic system and the branch oil circuit are set up two-way overload protection,according to the actual working conditions of the movement to adjust the rated pressure set to effectively avoid the system overload or improper use caused by the vehicle(including the vehicle), the vehicle is not moving
4) Hydraulic system are set up oil explosion-proof locking device to prevent the explosion due to tubing safety hazards, to ensure the safety of personnel and vehicles
5) Pull the arm are equipped with hydraulic and mechanical box locking device, correct Use to ensure transport safety
3. Interlock protection charater
1) The action associated with interlock protection, to prevent misuse caused by hydraulic or mechanical failure to eliminate security risks, to extend vehicle life 2) Hook lift system is made of high strength steel, local special treatment, strong bearing capacity, not easy to deformation 3) Hook lift system by polishing, multi-channel process to ensure that the appearance and color to meet the requirements; hook arm assembly are through a special bench test and heavy loading test to ensure the quality and life time 4. Advantagous of hook lift/roll-off/detachable container garbage truck
Its efficient waste collection capabilities contribute to the overall well-being of the environment and the health of the population.In conclusion,the Hook Lift Garbage Truck, also referred to as the Rear Loader Garbage Truck, Rearload Garbage Collection Truck, or Rear Loader Dumper Truck, is an essential tool in waste management. Its advanced features and reliable performance make it an indispensable asset for waste disposal operations
5. Hook lift garbage truck Chassis option:DFAC,FAW,SINOTRUCK HOWO,BEIBEN,SHACMAN,JAC,JMC,ISU ZU,etc
6. Hook lift loading capacity:1.5Ton, 5Ton, 8Ton, 10Ton, 12Ton,16Ton, 20Ton, 25Ton for you choice
Our company is PALFINGER appointed garbage truck refiting manufacture in China
Detailed Photos

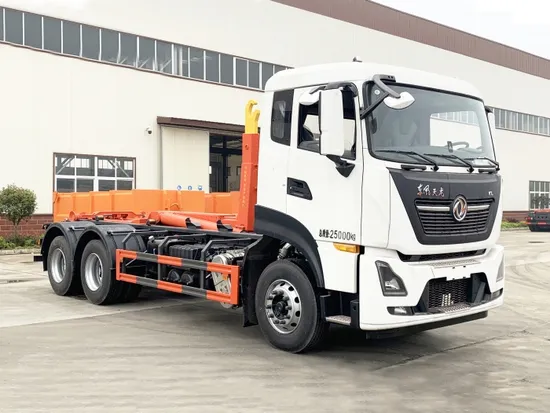

Dongfeng heavy duty 6x4 20Ton Ampliroll Hook lift garbage truck detachable container trash truck specifications
Dongfeng heavy duty garbage truck mounted 20Ton hook-lift We can design per client's special requirement Product Parameters

Dongfeng 6x4 375hp arm hook garbage truck
Emission Standard	Europe 3 stage
Model Name	HDW
Truck model	HDW5252ZXXD6
Driving Type	6×4
Dimensions
Wheelbase(mm)	4350+1350
Overall Dimension(mm)	9380x2550x3350(mm)
Arm hook lift capacity(kg)	20,000
Weights parameter
GVW(kg)	25,000kgs
Rated.Payload (kg)	13,670kgs
Curb weight(kg)	11,200kgs
Front axle(T)	7Ton load capacity,leaf spring suspension
Rear axle load(T)	13Ton double rear axle combined,axle ratio:4.44
Tread (Front/rear) (mm)	2010/1860,1860
Front / rear overhang(mm)	1480/1200
Approach/depart angle(°)	20/19
Max speed(km/h)	89
Vehicle Frame,suspension
Frame	Double-deck frame,300x90x8+5
Suspension	Front and rear strengthen leaf spring
Tire	295/80R22.5,total 10 tires + 1 spare tire
Engine
Engine model	ISLe375 30 from Dongfeng Cummins Motor
Engine type	4 stroke,direct injection,6 cylinder in-line,supercharge inter-cooler Diesel engine
Fuel tank capacity(L)	400L steel tank
Displacement(L)	8.9L
Engine power(kw)	275kw/375PS
Max.torque/speed	1550N.m/1100-1400r/min
Drive Line parameter
Clutch description	Dry single plate,hydraulic control booster,mechanical operation with hydraulic assistance
Transmission	FAST brand-12JSD180T with High/Low gear speed 10 forwarder,2 reverse gear,Mechanical by Manual operation
Braking system	Service brake	Dual air brake system
	Assistant brake	WEVB(Engine exhaust brake)
	Park brake	Spring brake
Steering wheel	Power steering assistance,Let hand drive
Cab description
1. One and half raw,with cooling and heating air conditioner,electrical window,MP3,radio,USB 2. The cab can reversible forwardly,3 person allowed in the cab
Hook arm specifications (PALFINGER HOOK arm are optional)
Garbage container volume(CBM)		Customized per customer's request
The Hooking Capacity(T)		20Ton
The Hook arm material		Q40,Q50 high strength steel
System pressure(Mpa)		25
Control voltage(V)		24
Hook arm self weigh(kg)		2300
Extension of hook arm(mm)		800-900
Hydraulic Oil pump displacement(ML/r)		60,made in China or import pump
Hydraulic oil tank capacity(L)		110L or more
Loading/unloading cycle time(S)		45S or less
The hook center height(mm)		1570
Distance from hook center to rear roller(mm)		4630
Width of guild rail(mm)		1060
Hydraulic oil pump		China made hydrulic pump

Dongfeng 20Ton Ampliroll Hooklift truck Exhibition in workshop Work Shop Shows
Finished truck corner Tank manufacture room Laser cutting machine Electrostatic spraying process Sand-blasting room Spray treatment and ovan products Spray treatment product corner Sand-blasting semi-rproducts Spray treatment products corner Sand blasting semi- products profile Exhibition & Customer Memories
Packaging & Shipping
Shipment by bulk vessel,RO-RO vessel or Flat rack container
Small Goods by 40FT container
Our company have many successful cases for shipment all over the world,we will provide professional Logestic transportation services to Client forever
Our Advantages
Advantages
1) Factory price competitive than local market dealer
2) Quality: With a series of inspections in production and after production.BV,SGS inspection are available before delivery if client need the service
3) Warranty: One year or 1000 Hours which comes to the first for the engine, gear box,and axles
4) Fast delivery: Generally most common model in 35 days and special model in 45 days
5) After-sales: Spare parts and technical support.Video call guildance is available
6) Transportation: Long term relations with international shipping company.Many successful cases
