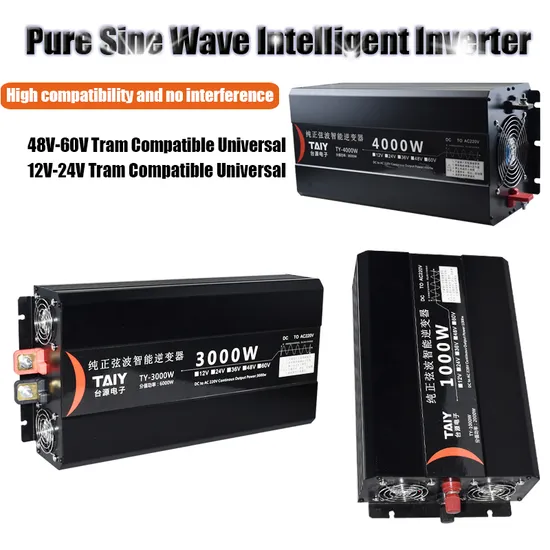

500W 24VDC to 220VDC Pure Sine Wave Intelligent Inverter
Basic Info.
Model NO.
TY-500W-24
Output Power
500W
Grid Type
Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Pure Sine Wave Intelligent Inverter
Type
DC/AC Inverters
Machine Model
Ty-500W-24V
Peak Power
1000W
Output Waveform
Pure Sine Wave
Output Frequency
50Hz or 60Hz
Input Voltage (Range)
DC24V/18-31V
Net/Gross Weight (G)
960g/1160g
Working Environment Temperature
-10deg;- +50deg;
Transport Package
285*150*66
Specification
246*107*62
Trademark
TAIY
Origin
China Wenzhou
HS Code
8504409950
Production Capacity
20000/Month
Packaging & Delivery
Package Size
28.50cm * 10.70cm * 6.20cm
Package Gross Weight
1.200kg
Product Description
| Technical parameters of pure sine wave 500W-A type | |||
| Machine model | TP-500W-12V | TP-500W-24V | TP-500W-48V |
| output power | 500W | ||
| peak power | 1000W | ||
| Input voltage (range) | DC12V(9-15.5V) | DC24V(18-31V) | DC48V(38-61V) |
| Output voltage (single choice) | (100vAC/110vAC/120vAC/220vAC/230vAC/240vAC)±5% | ||
| No-load current | ≤0.4A | ≤0.2A | ≤0.2A |
| output frequency | 50Hz or 60Hz | ||
| Output waveform | Pure sine wave | ||
| Output waveform harmonic component | THD ≤ 3% (pure resistive load) | ||
| USB | 5V,2.1A | ||
| The highest output efficiency | 90% | ||
| Undervoltage protection | Alarm first (the alarm sound is one sound), the LED red light flashes, and the voltage continues to decrease and turn off | ||
| Overvoltage protection | Alarm (the alarm sound is a double tone) LED red light flashes and turns off | ||
| overload protection | Continuous alarm, LED flashing red, off | ||
| Over temperature protection | Alarm first (the alarm sound is three), the temperature continues to rise, and the LED red light flashes and turns off | ||
| Short circuit protection | Short circuit protection without damaging the circuit | ||
| Reverse protection | Fuse blown | ||
| Under voltage alarm range | 10.5±0.5V | 21±0.5V | 42±1V |
| Undervoltage protection range | 9.5±0.5V | 19±0.5V | 38±1V |
| Overvoltage protection range | 15.5±0.5V | 31±0.5V | 61±1V |
| Undervoltage recovery range | 13±0.5V | 24±0.5V | 48±1V |
| Overvoltage recovery range | 14V±0.2V | 28V±0.5V | 54V±1V |
| Working environment temperature | -10°- +50° | ||
| Product size (mm) | 246*107*62 | ||
| Installation size (mm) | 221*48 | ||
| Label size (mm) | 39.5*210 | ||
| Packaging size (mm) | 285*150*66 | ||
| Outer box size (mm) | 47*30*36.5 | ||
| Net/Gross Weight (g) | 960g/1160 | ||
| Quantity/box | 15PCS | ||
| Full container weight (Kg) | 18.4 | ||
| Warranty | |||
| Wiring configuration (mm ²) | 6mm² | 4mm² | 2.5mm² |
| Fuse configuration | 30A*2only | 30A*1only | 20A*1only |
| Cooling method | Intelligent air cooling | ||
