C Type Heat Press Machine for Silicone Rubber Pad for Sale

Product Description

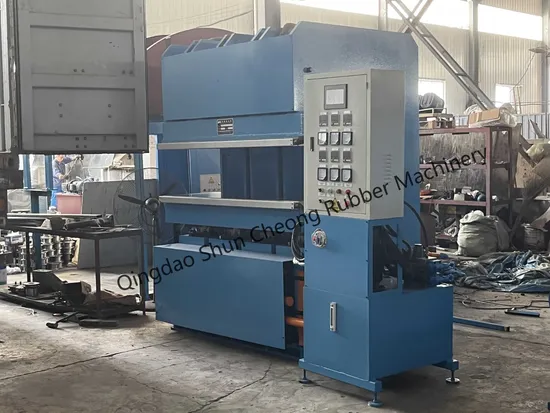

C type heat press machine for silicone rubber pad for sale
Technical Parameters:
We can design and manufacture various Rubber vulcanizing press according to your specific requirements.

Parameter /Type	XLB-240×240×2	XLB-350×350×2	XLB-400×400×2	XLB-500×500×2	XLB-600×600×2	XLB-700×700×2	XLB-750×850×2	XLB-900×900×2
Total Pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20	1.60	2.00
Plate Distance (mm)	125	125	125	125	125	125	200	300
Working Layer NO.	2	2	2	2	2-4	2	2-4	2
Unit Area Pressure of Hot Plate (Mpa)	2.60	2.04	3.13	2.52	2.77	2.45	2.51	2.47
Plunger Stroke (mm)	250	250	250	250	250/400	250	400	400
Heating Mode	Electric	Electric	Electric/ Stream	Electric/ Stream	Electric/ Stream	Stream	Electric/ Stream	Stream
Motor Power (kw)	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
Size: (L× W× H) (mm)	1200× 350 × 1300	1400× 480 × 1380	1600× 500 × 1480	1750× 600 × 1540	1880× 720 × 1680	2000× 850 × 1750	2250× 1200 × 2200	1400× 900 × 2400 (Mainframe)

Our company:
1. 20 years on rubber vulcanizing press manufacturing and exporting.
2. Delivery within 30 days.
3. Safety wood or plywood crates packing.
4. Full transportation insurance.
5. Sell to 126 countries on 6 continents.
6. One-stop rubber machinery solution in Qingdao Shun Cheong 7. This Rubber Vulcanizing Press is used to manufacture the special seal rings in petroleum mechanical. 8. PLC control Method. 9. Customers can choose according to their needs.
10. The new design concept, strong technical force and advanced manufacturing processes of the company ensure that each rubber vulcanizing press can be manufactured to meet customer's individual requests.11. CE, SGS, ISO9001: 2008 certification.12. The press has two electrical platens (one working layer)13. PLC control, high production efficiency14. Height from floor to underside of top heated platen according to clients requirements design.15. Daylight when press open according to clients requirements design.16. Independent control panel.17. Competitive price18. Hot plates made of HT200, surface by surface grinding processing, plate face to face parallelism accuracy ± 0.05mm, finish is 1.0μ M.19. The wires are connected machines, as long as the power supply is connected, the machines can work.
Packaging
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.
In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.
Welcome to visit our factory!
