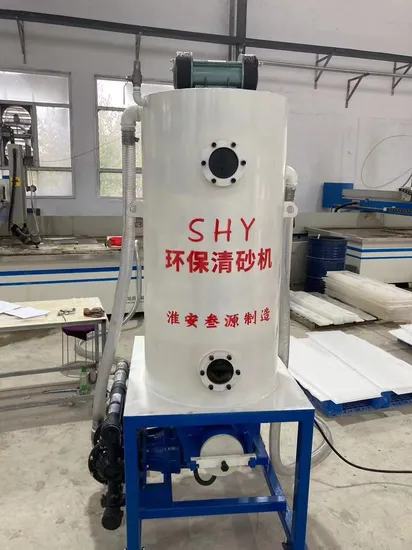

Water Jet Sand Clearing Machine for High Pressure Cutting

Product Description

Our company's third generation of water cutting machine sand water separation system, is a special for water knife removal of waste sand research and development equipment. The equipment breaks through various problems in the traditional waste sand removal, has various advantages that the traditional sand clearing can not match, and becomes the most effective, most convenient, most simple and most practical water knife sand water separation system at home and abroad.
Our aim is: save valuable time for you, create more benefits! The device can work in the water knife at the same time, put the sand suction head into the water tank, you can carry out sand cleaning work. The completion of sand cleaning will not affect the normal work of the water knife. It completely avoids the inconvenience that traditional sand cleaning must be shut down, water must be discharged, and the water tank must be filled with water again after artificial sand cleaning, which wins valuable time for normal work. Water knife, water knife, sand removal system is your essential configuration.

Electric sand cleaning equipment specifications
Model Specification:JSJ-3series

maximum flow (L/min)	378.5	working medium	Water sand	Voltage (V)	380
Maximum lift (m)	84	Working environment range	5-60ºC	Suction sand (m³/h)	0.6
Maximum suction (m)	5.48	Conveying medium range	-20ºC-150ºC	Sand discharge speed	52 RPM
outlet pressure (kg)	8.4	Recommended lubricating oil	ISO VG32	displacement	Can /10 minutes
caliber (mm)	50	type of drive	electric	Structure	Vertical cylinder
Total Power(KW)	7.5(3*2+1.5)	Tank thickness (mm)	6	external dimension	Φ 600*2300
particle diameter (mm)	3.5	Floor area (m ²)	1	Gross weight (KG)	310
Power consumption (kw/h)	1.95(Per can)	place of origin	Huaian
