PA66 Nylon Peel Ply for Vartm Vacuum Infusion Process
| US$0.70-0.88 | 100 Square Meters (MOQ) |
Basic Info.
Model NO.
PL85
Width
Max 3 Meter
Weight
85
Type
Plain Fabric
Technics
Woven
Pattern
Coated
Style
Plain
Knitted Type
Warp
Fiber Length
Long Fiber
Thickness
0.15mm
Working Temperature
Max 190 C
Material
Nylon,PA66
Transport Package
Roll
Specification
85
Trademark
JLON
Origin
Changzhou, China
HS Code
5407410000
Production Capacity
100, 000, 000m2/Year
Product Description

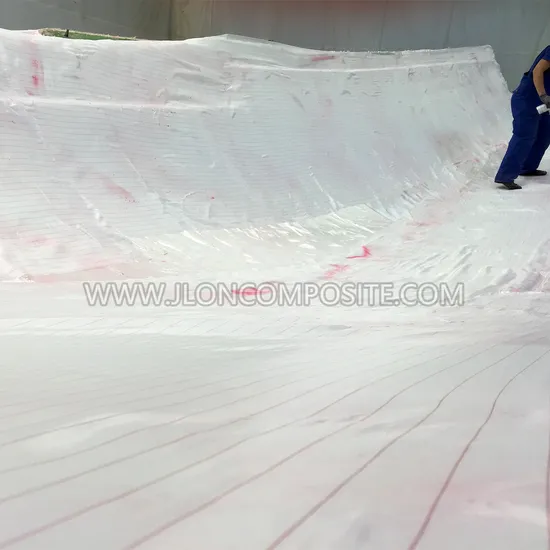

Introduction:The peel ply PL85 is Nylon (PA66) woven fabric which is high in quality, yet inexpensive. The peel ply PL85 is designed to work in VARTM vacuum resin infusion or hand lay-up processes. The peel ply PL85 assist or eliminate the need for sanding or abrading on your composite laminate.
We provide different width and roll length , for more information please contact us.
Features:
Low material cost.
High temperature resistance suitable for multi resin systems.
Easy to remove, reducing the possibility of the peel ply being left one the parts.
Application:
Vacuum bagging applications , hand lay-up process.
Typical Specifications:
| Physical Property | Units | Specification | Test Method |
| Weight | g/m2 | 85 | - |
| Material | - | Nylon,PA66 | - |
| Color | - | White/Red tracers | - |
| Working Temperature | C | Max 190 | - |
| Thickness | mm | 0.15 | - |
| Standard Roll Width | m | 1.8 | - |
| Standard Roll length | m | 200 | - |
