68 Degree Residential Brass Concealed Fire Sprinkler for Fire Fighting System
| US$1.00-1.50 | 50 Pieces (MOQ) |
Basic Info.
Model NO.
HY012-004-00
Temperature
57 /68 /79 /93 /141
Response
Standard
Color
Brass/Chromed/White
Transport Package
Carton&Pallet
Specification
DN15
Trademark
HY or OEM
Origin
China
HS Code
8424901000
Production Capacity
10000pieces/Month
Product Description

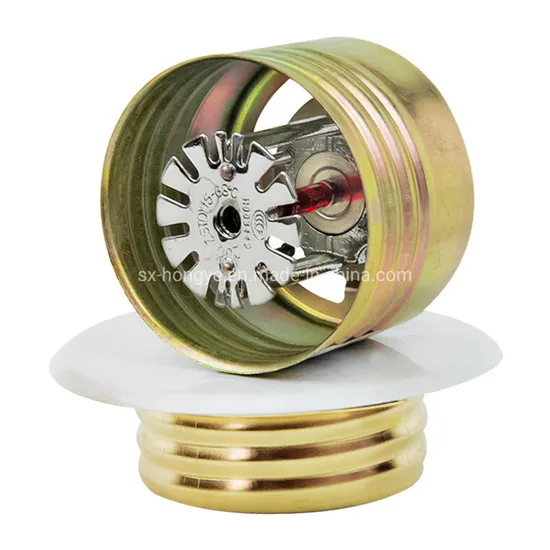

Product DescriptionFIRE SPRINKLER HEAD CONCEALED TYPE
Fire sprinkler is a nozzle that use to spray water to the fire.
It is installed at the end of water pipe.
It can sense the heat by a specific glass bulb then open automatically to allow water spray out to extinguish the fire.
1) Type: Concealed
2) Material: brass,chrome finishing
3) Temperature: 68ºC(155ºF) sprinkler with 63ºC(145.4ºF) plate
4) Nominal diameter: 15mm
5) K factor: DN15=5.6gpm/psi½(80 lpm/bar½)
6) Thread: BSP R1/2
7) Glass bulb: standard respond
8) Weight: 135±5g
Real Photos
Product Parameters
| Norminal Diameter | Connection Thread | Flow rate | Temperature |
| DN15 | R1/2" | 80±4 | 57/68/79/93/141° |
| DN20 | R3/4" | 115±6 | 57/68/79/93/141° |
