High Efficiency Energy Saving Plastic Product Making Injection Molding Plastic Production Line

Product Description

High Efficiency Energy Saving Plastic Product Making Injection Molding Plastic Production Line
Description:

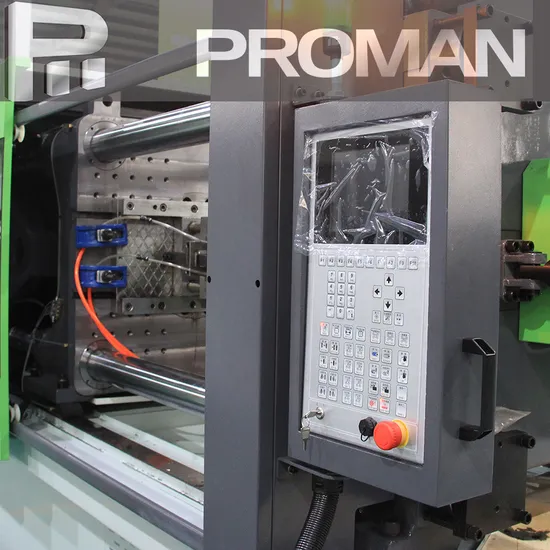

Reliable plastic injection machine with servo motor ,equiped with servo motor , closed loop control for pressure and flow .Low noise,high precision and energy saving .Inject all kinds of plastic parts, bottle preform, engineering plastic, UPVC, PVC, PE pipes fitting, pomponents for automotive, household, eletronics, telecommunication, etc.
Proman standard injection machine, is a fully new concept PET preform injection machine, which design based on more than 10 years of manufacturing experience, and good understanding on injection molding processing and PET mold technology. We have much experience on application of the wide mouth jar preform, salad oil preform, water/beverage preform, cosmetics/pharmaceutical preform. We learned the customer's production lessons on site, do our best to meet customer demand, to improve our technology, to make our injection machine more reliable, more closer to the market demand. Our injection machine is more compatible, and application to all various PET preform field.
Try the best to run on cycle time more faster.

	Motor Unit:High efficiency servo motor and imported gear pump system, energy saving up to20%~50%. Injection unit adopt high precision double linear guide, friction rate lower, resistance force is lower on injection plasticization, more faster injection, cycle time more faster.
Shooting Screw:Using ceramic heating ring, heating up fast, good thermal insulation performance, energy saving more than 30%, can avoid products in the production process due to the temperature control is not accurate and plasticizing poor phenomenon.
	Mold Plate:The machine mold plate is equipped with T - groove structure, easy for mold changing over. The optimized ejector structure design based on PET preform processing, have a more bigger ejecting force, and more faster. Injection unit adopt high precision double linear guide, friction rate lower, resistance force is lower on injection and plasticization, more faster injection, cycle time more faster.
The injection quantity is increased by 40% compared with that of the conventional machine, and the special brushless motor with large torque PET is provided, the plasticizing efficiency is higher, and the injection period is shorter. The screw barrel structure specially designed for the PET special machine and the data of the corresponding working elements are seamlessly interfaced to realize the normal operation of lower plasticizing pressure, lower current and higher production capacity.

Features:
1.Excellent energy saving
Servo energy saving injection molding machine output power changes with the loading changing. There's no extra waste of power. The motor doesn't work while cooling, electricity consumption is 0. As compared with the tradition injection molding machine, the servo machine can save electricity 20%-80% that brings you excellent profit. 2.Excellent injection molding stability
As compared with the traditional fixed pump injection molding machine, it saves energy 20%-80% under the same working condition.
3.Fast response
The pressure and flow of servo drive system applies closed-loop control, as compared with the traditional injection molding machine, it greatly increases repeatability precision of injection molding.Fast response servo drive, the start time faster than that of the traditional injection molding machine by 50%.
4.Environmental friendly
The complete machine runs under low noisy, low speed operation and quite.
5.Constant oil temperature
The servo motor output hydraulic oil according to proportion to avoid extra heat. Even the hydraulic oil need not to be cooled to realize excellent water saving.
Certifications :
Appendix: 1.After equipments reached the workshop of customer,place equipments according to plane layout we offered.We will arrange seasoned technician for equipment installation,debug and test production at the same time make the equipments reach the rated producing capacity of the line.The customer need to offer the round tickets and accommodation ,and the salary for our engineer. 2.Our company offer technology training to customer.The content of training structure and maintenance of equipments,control and operation of equipments. 3.We promise that our goods are all new and not used. 4.After checking,we offer 12months as quality guarantee,free offer wearing parts and offer other parts at the lowest price.After quality guarantee,we offer technology support and after sales service.Offer wearing parts and other spare parts at favorable price.
Warmly welcome customers from all over the world to visit our factory.If you are interested in our products, please contact if you have any problem.
