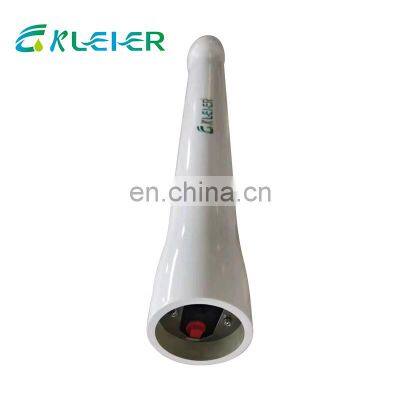

4 inch glass fiber reinforced plastic pressure vessel water treatment machinery 4040 membrane shell

Product Description

Product Description
Connection type 4040 end connection, 4040 side connectionPressure type150, 300, 450, 600, 800, 1000PSILength type1-5 coresAppearance colorwhite label configured, can be customized according to customer demandTechnical requirements1. The manufacturing method of the membrane shell is in accordance with the JC692-1998 standard; 2. The design pressure of the membrane shell is 150, 300, 450, 600, 800, 1000PSI, and the allowable working temperature range is -7℃-49℃ 3. Water pressure test method for membrane shell penetration test, the test pressure is 1.5 times the design pressureWork pressureSection numberL(mm)S(mm)P(mm)Work pressureSection numberL(mm)S(mm)P(mm)300PSI11118/123570010161000PSI11177/1277700101622135/22511350203222193/22931350203233152/32681960305033210/33681960305044168/42841580*2406644226/43261580*240661.Fixing screw6."OK" Sealing Ring2.Gear ring7."O" Seal Ring 3.Fastening nut8.Adapter4.Supporting plate9."O" Seal Ring5.Sealing plate10.Thrust ring Shandong Claire Environmental Technology Co., Ltd. is located in Liaocheng, Shandong. It is a professional manufacturer of emerging technologically advanced FRP pressure vessels for water treatment and derivative products integrating production, R&D and sales. The company has always been adhering to the business philosophy of "high quality, customer first, first-class service", providing customers with excellent qualified products and high-quality after-sales service. The company has passed IS09001 international quality system certification, ISO14001 environmental management system certification and GB/T28001 occupational health and safety management system certification, and has been rated as an AAA credit unit. The company has established a reliable quality management system in strict accordance with modern enterprise management regulations. The company's marketing service network edits various regions, covering 31 provinces, municipalities and autonomous regions in China, and exports to dozens of countries and regions in Asia, Europe, North America and Africa.Q1: Can I get some samples?A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.Q2: Do you receive customized order?A: Yes, ODM & OEM are welcomed.Q3: What's the lead time？A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.Q4: What's your warranty terms?A: We supply 12 months warranty time.Q5: What's your payment terms?A: We receive Escrow, T/T, West Union, Cash and etc.
