1.5-2 T/H Biomass Pellet Machine Sawdust Wood Pellet Mill for Burning Pellets

Product Description

Product Description

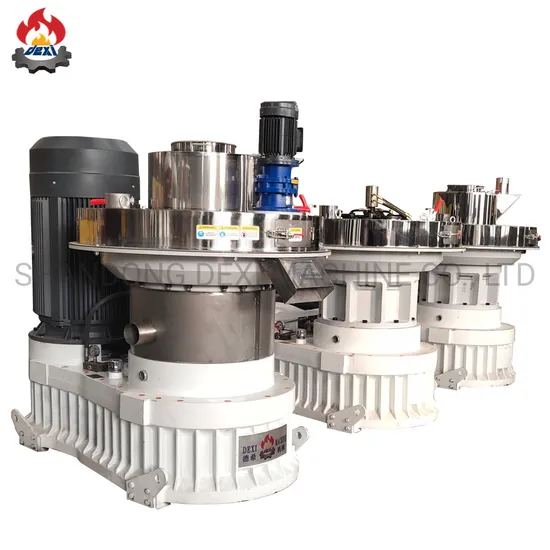

Automatic lubrication 2T/H Biomass pellet machine
Introduction: XGJ series Biomass pellet machine is different from other horizontal ring die machine, this machine with vertical structure, easy for biomass materials feeding, big pressure, big capacity and working stable. It is the high efficiency equipment for biomass pellet making.

This biomass Biomass pellet machine is good at press low adhesive and hard molding materials, such as press the rice husk, hard wood sawdust, sunflower seeds husk, peanut shell, wood bark and other wood waste, it also can press different kind of straw and agriculture waste. This Biomass pellet machine is widely using in biomass pellet making industry and other pellet forming industry.

Main superiorities for wood pelletizer: 1. Vertical ring die structure, feeding vertically, easy heating dissipation, long time running continually.

2. Ring die fixed, the roller rotates in the ring die, so no deflection, no shaking, machine running more stably.

3. Double-layer stainless steel ring die, up and down side. One ring die can be using 2 times by turn it over. Cut down operating costs.

4. With gear box lubricating system and the roller bearing auto-lubricating system, the machine can operating continuity. (Can 24 hours no stop working)

5. Whole based as gearbox, inside gears size big, and gear modulus increased, make the gearbox strong and working stable. We give 3-year guarantee for this type of gearbox.
Detailed Photos
Functions And Features

Sawdust pellet machine is a kind of pellet fuel molding machine that uses corn straw, rice straw, hibiscus, wood powder, sawdust, wood block and other agricultural wastes as raw materials to produce biofuels.
The whole machine has high efficiency,good performance, low power consumption, high product quality and wide adaptability, and can meet various processing requirements.

Right elevation Front elevation Left elevation
Product Parameters
The mainly parameters for the wood pelletizer:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
XGJ460P	55+0.37+0.37+2.2	500-800	4700	2530x1200x1550
XGJ560	90+1.5+0.37+0.37+2.2	1000-1500	6100	2600x1300x2300
XGJ560P	132+1.5+0.55+0.37+2.2	1500-2000	5800	2600x1250x1600
XGJ700P	160+3+0.55+0.37+3	2000-2500	6200	2600x1300x1650
XGJ850	220+3+0.55+0.55+3	2500-3000	14500	3300x1400x3100
XGJ850P	220+3+0.55+0.55+3(3-850)	3000-3500	9600	2600x1600x1950
XGJ850P	220+3+0.55+0.55+3(2-850)	3500-4500	9800	2600x1600x1950

Inner Structure:1-Vertical 2 layer ring die, one ring die can using 2 times
2- Adjustable rollers, easy setting the gaps between roller and ring die.
3- Rotating Joint, the grease can be inject into the roller bearing continually.
Machine structure: 1-The motor is vertically installed on the machine base, so the machine is more stable and there is no shaking during operation.
2-The gearbox is set on the machine, connected with the motor shaft and the vertical shaft of the machine, and efficient power transmission.
3-Machine vertical structure, easy material feeding, suitable for biomass particle manufacturing
Machine Details
Circulating Cooling, Automatic Lubrication System High Precision SS
Machine On Stop Working Ring Mold,Stable Operation
Structure Diagram
Advantages of vertical ring mold granulator: anti shake, small size, low energy consumption, high efficiency, low noise, strong fatigue resistance of the machine, continuous production, high output and excellent economic benefits.
Successful Project
We have installed many complete pellets production lines at home and abroad, such as pellets production lines in Malaysia, India, Indonesia, Vietnam and Myanmar...
Customer Interview
The customer is communicating Talking machine Group photo congratulations

Packaging & Shipping
Packaging and transportation with environment-friendly film, steel wire binding, no sliding.
Company Profile
Shandong Dexi Machine Co., Ltd Located at Licheng, Jinan, Shandong Province China.We are professional supplier for the biomass pellet machines and complete pellet production line.Our products involve, wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other equipment, such as animal feed pellet line, organic fertilizer pellet making line.
We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever pellet making machine you need from China, contact: Shandong Dexi Machine Co., Ltd. A one stop shop in the middle of China.
