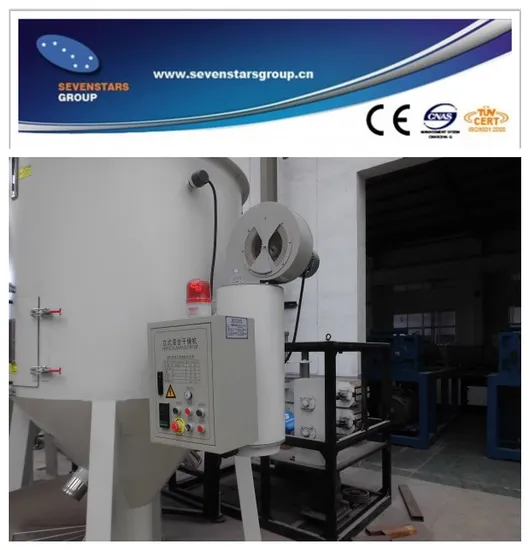

Plastic Drying Mixing Machine

Product Description

Working Principle:
All material will be transported to the top of tank by the screw spindle , then fall like umbrella shaped, So on and infinitum, so that to mix well.
Technical Parameter

Model	Motor Power(KW)	Capacity(KG)	Speed(rpm)	Material
JFJ-0.5	3.0	500	350	Stainless steel/ Carbon steel
JFJ-1.0	4.0	1000	350	Stainless steel/ Carbon steel
JFJ-2.0	5.5	2000	350	Stainless steel/ Carbon steel
JFJ-3.0	7.5	3000	350	Stainless steel/ Carbon steel
JFJ-5.0	11	5000	350	Stainless steel/ Carbon steel
JFJ-10	15	10000	350	Stainless steel/ Carbon steel
JFJ-12	15	12000	350	Stainless steel/ Carbon steel
JFJ-15	15	15000	350	Stainless steel/ Carbon steel
JFJ-20	15	20000	350	Stainless steel/ Carbon steel

*Main Features
1 parameters, product prices, pictures are for reference only, please call or email advice.
2 this product is made of stainless steel, large capacity, easy to clean, no rust, (can also according to customer requirements for customized iron material).
3 frame by frame structure design, durable;
This machine is equipped with 4 time control system can be set arbitrarily, mixing time, overload protection.
5 spiral with circulating stirring mixing evenly and quickly, the propeller in welding after the overall processing, high concentricity, smooth operation to ensure that each batch of material properties of the same color.
6 vertical operation, labor saving, large capacity area of small.
7 speed, small horsepower, mixed volume, uniform mixer for 3-5 minutes.
8 bearing at the bottom of the frame is durable, grease filling device and discharging device.
9 according to customer requirements can also be customized workshop height, reduce the cost of production of carbon steel.
10 from 0.1-10 tons of capacity models for customers to choose, or installing a heating system.
11 customers can according to their own needs to choose heating or not heating machine.
