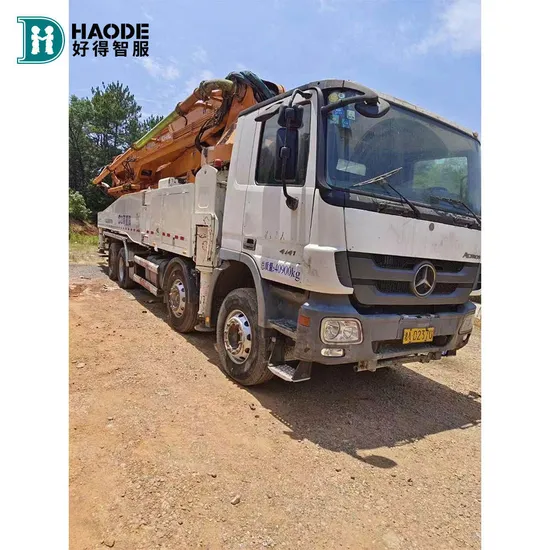

Used Pump Truck Zlj5419 Lifting 52m Zoomlion Boom Truck Hydraulic Pump
| US$70,000.00-120,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
SYM5283THBDZ
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Feeding Height
1400mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000
Condition
Used
Color
White
Concrete Delivery Max
180m3/H
Power Type
Diesel
Power
300km, 300kw
Max. Vertical Conveying Distance
52m
Max. Horizontal Conveying Distance
48m
Number of Arm Segments
5
Weight
38830 Kg
Brand
Zoomlion
Video Outgoing-Inspection
Provided
Product Name
Concrete Pump Truck
Core Components
Engine
Transport Package
Standard Packing
Specification
steel
Trademark
sany
Origin
China
HS Code
8429521200
Production Capacity
10000 Piece/Pieces Per Month
Product Description
| Pumping system | | | ||
| Maximum theoretical throughput | m3/h | 200/140 | ||
| Maximum outlet pressure of concrete | Mpa | 8.3/12 | ||
| Rated working pressure | Mpa | 35 | ||
| Pumping frequency | min-1 | 30/21 | ||
| Concrete cylinder diameter x stroke | mm | Φ260×2100 | ||
| Arm bracket | | | ||
| Structural form | | 52X-6RZ | ||
| Maximum fabric (height/radius/depth) | m | 52/48/37.6 | ||
| Turning Angle | ° | ±270° | ||
| Chassis and complete vehicle | | | ||
| Chassis type | | Mercedes ACTROS 4141 8×4 | ||
| wheelbase | mm | 2020+4280+1350 | ||
| Maximum engine power | Kwr/min | 300/1800 | ||
| Tail gas emission standard | | Euro | ||
