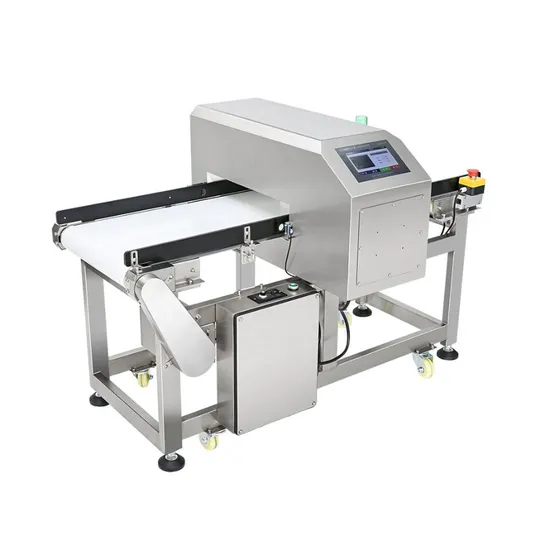

Digital Industrial Metal Detector for Food

Product Description

Product DescriptionDigital Industrial Metal Detector for Food
A metal detector is an electronic equipment used to detect metallic contaminants in raw materials or products.
Our metal detectors are suitable for various industries like food, pharmaceutical, plastic, daily chemical, textile, recycling, electronics, etc. It effectively detects impurities like ferrous, copper, SUS, aluminum and so on. When metal is detected, the equipment produces an audio signal and visual indicator to alert the user, belt stops or automatic rejection can be customized. By incorporating metal detector, businesses can ensure compliance with industry standards like HACCP, GMP, QS and ISO9001. This technology helps manufacturers reduce the risk of product recalls, minimize downtime and maintain smooth production processes.
Product Application
Optional Rejection
Product Feature1.Touch screen or LCD screen can be chosen
2.The whole machine is made of SUS 304
3.Removable feet and SUS feet for easy movement and stable placement4. Adjustable speed, customizable size, detect sensor uses special technology of COSO
5.Factory is ISO9001 certified, machine is CE certified, belt is FDA certified
6.Inclined conveyor can be customized to meet requirements
7.Machine has self-learning function, can store 200 sets of product parameters
Product Parameters
DB: Width of detector H1:Height from conveyor belt to the ground
DH:Height of detector H2:Height of whole machine
TB:Passing width L:Length of conveyor belt
TH:Passing height W:Height of whole machine

Model	Size of whole machine(mm)				Size of detector(mm)				Sensitivity(mm)
	H1	H2	L	W	DB	TB	DH	TH	Fe	SUS
3008	7008	850	1200	650	300	250	80	50	0.5	1.0
3010	700	870	1200	650	300	250	100	70	0.6	1.2
3012	700	890	1200	650	300	250	120	90	0.7	1.4
3015	700	920	1200	650	300	250	150	120	0.8	1.5
4510	700	900	1400	750	450	400	100	70	0.6	1.3
4512	700	920	1400	750	450	400	120	90	0.7	1.4
4515	700	950	1400	750	450	400	150	120	0.8	1.5
5010	700	900	1500	850	500	450	100	70	0.6	1.3
5012	700	920	1500	850	500	450	120	90	0.8	1.4
5015	700	950	1500	850	500	450	150	120	1.0	1.5
5020	700	1000	1600	850	500	450	200	170	1.2	2.0
5025	700	1050	1600	850	500	450	250	220	1.5	2.5
5030	700	1100	1600	850	500	450	300	270	2.0	3.0
6030	400	800	1800	950	600	550	300	270	2.5	3.5
6035	400	850	1800	950	600	550	350	320	3.0	4.0
6040	400	900	2000	950	600	550	400	370	3.5	4.5
6050	400	950	2000	950	600	550	500	470	4.0	5.5

Notes:
1. All the sensitivity parameters above is on the basis of the test card detected on conveyor belt; while the actual sensitivity will be affected by the product's features and working environment.
2. Above technical parameters are some ordinary models, if you want to know more different technical parameters, please consult our employees.
3. Products will constantly upgrade; please refer to our newest technical parameters for changes on parameters.
Company ProfileEstablished in 2005, Dongguan Coso Electronic Tech Co., Ltd. is a professional detection equipment manufacturer. The factory is located in Dongguan, China, with convenient transportation access, covers an area of 6000 square meters.
We concentrate on industrial metal detector, metal separator, checkweigher, weight sorting machine, X-ray inspection system and needle detector. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.With the strong ability of customization,we can provide professional solution to meet customers' requirements with competitive price. The machine is easy to operate because of modular design and friendly HMl. We have professional engineers and experienced workers, which guarantee the quality, stability of equipments.
We warmly welcome customers to cooperate with us. lf you are interested in our machines, welcome your kind inquiry.
Q1: Are you a manufacturer?
Yes, our factory was established in 2005, we specialize in design and production of detection equipments which have been exported to over 80 countries around the world.
Q2: What kind of service do you provide?
ODM, OEM and OBM.
Q3: How long is your delivery time?
Around 15 working days after receiving your deposit.
Q4: What's your minimum order quantity?
One set.
Q5: Do you accept customization?
Yes, all of our products can be customized according to customer's requirements.
Q6: How is your after-sales service?
Online technical support and instant communication are always available;
Our products have one-year warranty;
You can send people to our company for training;
We can send engineers to your company to help when needed.
