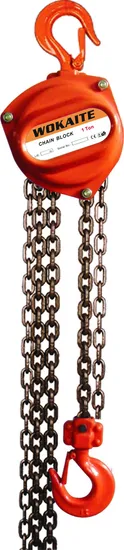

20 Ton Lifting Manual Equipment Hand Chain Block with Chain Pulley Hoist
| US$30.00-700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HSZ-A
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Chain Hoist
Sling Type
Chain
Lift Speed
<2m/min
Maximum Lifting Height
3
Chain Falls
8
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Structure
Hook Crane
Type of Work
Middle-Level
Suspension Types
Hook,Manual Trolley,
Rated Capacity
250kgs to 50t
Delivery Day
7-30 Days
Load Chain Diameter
10mm
Transport Package
Wood Carton
Specification
0.5 ton-50 ton
Trademark
WOKAITE
Origin
Zhejiang China
HS Code
8425110000
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
64.00cm * 38.00cm * 64.00cm
Package Gross Weight
173.000kg
Product Description
Compact and light Our best and strongest designed,all-steel manual chain hoist.
Bearing mechanism to increase mechanical effciency.
Special Hooks Drop-forged top and bottom hooks are specially designed for slow
Bending to warn excessive overload.
Rust protection Durable powder coat paint.
Safety brake Asbestos-free brake discs.
Load chain sprocket made of alloy steel with precision machining and heat treatment.
Double pawts Double pawt with springs provide redundancy for reliable operation
of brake mechanism according CE-regulations.
HSZ-R Series Chain Hoist Specifications
| Model | HSZ-0.5 | HSZ-1 | HSZ-1.5 | HSZ-2 | HSZ-3 | HSZ-5 | HSZ-10 | HSZ-20 | HSZ-30 | HSZ-50 | |
| Capacity | tons | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard lift | m | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Running test load | KN | 6.1 | 12.3 | 18.4 | 24.5 | 36.8 | 61.1 | 91.9 | 235.2 | 367.5 | 612.5 |
| Effort required to lift rated load | N | 200 | 320 | 360 | 365 | 385 | 435 | 435 | 435×2 | 435×2 | 435×2 |
| Strands of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 22 | |
| Load chain diameter | mm | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 |
| Net weight | kg | 8.4 | 10.5 | 15.5 | 18.5 | 21.2 | 41.8 | 81.7 | 173 | 238.5 | 1092 |
| Packing measurement | cm | 22×15×19.5 | 23×18×19.5 | 28×18×19.5 | 28×21×24 | 32×21×26 | 40×21×31 | 50×41×21 | 64×38×64 | 72×50×68 | 110×110×130 |
| Extra weight per metre of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | 29.1 | 53.4 |
