High Performance Itracy Integration Long Lifetime Mini Fiber Laser for Engraving Patterns

Product Description

High Performance Itracy Integration Long Lifetime Mini Fiber Laser For Engraving Patterns
Product Description

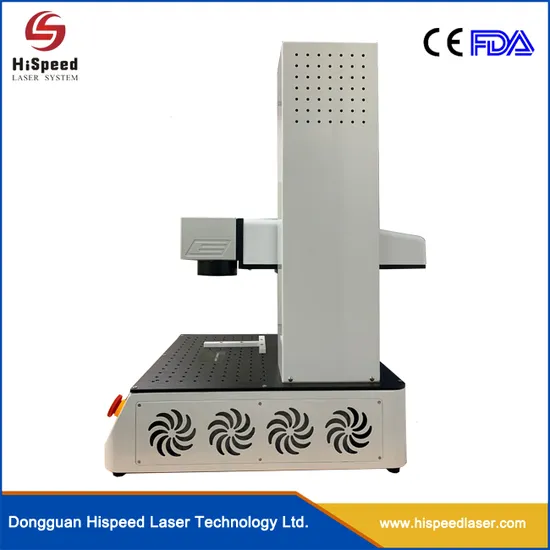

This is convenient HiSpeed laser marking machine with work table, muilt-function. Equipped with Raycus laser source, offer strong laser power and strong laser beam. Suit for marking all metal,especially for gold/silver copper cutting and engraving patterns, characters, and other graphics that need to be etched.
Laser Machine Features: The optical fiber laser marking machine uses the laser beam to mark the surface of various substances permanently. 100000 Hours Long lifetime, No consumables, Free of Maintenance. High Precision Reposition precision is 0.003mm High Speed High quality laser scanning system makes the marking speed up to 7000mm/s Air Cooling Adopts air cooling,excellent cooling effect than the other cooling method Long life time up to 70,000-100,000hours Detailed Photos
Operating software
Accessories
--- The marking scope can be optional, the bigger marking scope the bigger lens and the higher focus length. HiSpeed technicians recommend the match as below:

Model	Laser Power (W)	Marking scope recommend (mm)	Focus length (mm)
LS-YLP-20L	20	70*70/100*100	100/160
LS-YLP-30L	30	70*70/100*100/150*150/200*200	100/160/210/290
LS-YLP-50L	50	70*70/100*100/150*150/200*200/220*220/300*300	100/160/210/290/330

Application & Sample
Fibe Laser Marking Machine widely used in mobil power/charger,mobil phone shell/button,electroniccomponent,integrated cicuits,ring,bracelets,cables and wires,electric equipment,mugs,glasses,watches,key,instrument, sanitary ware,stainless steel products car accessores,medical device industries.
Product Parameters

Model	LS-YLP-20L/30L
Power	20W,30W
Wavelength	1064m
Beam Quqlity	M2<1.3
Output Power	10%-100%
Output Frequency	20KHz-100KHz
Power Stability(8h)	<±1%rms
Focus Spot Diameter	<0.01mm
Engraving Depth	0.5mm~2.5mm
Engraving Speed	7000mm/second
Minimum Line Width	0.12mm
Minimum Charecter	0.1mm
Repeated Accuracy	±0.003
Cooling Model	Air Cooling
Environment Temperature	10°C~35°C
Environment Humidity	20%-80%
Power Requirement	220V/Single Phase/50Hz<4A
Life of Laser Module	100000Hrs
Host Size	480mmx420mmx800mm

--- Free sample marking:
HiSpeed Laser Team offer free sample testing, you just need to send us your file and samples, and your requiremnt.
we will do marking here and make video to show you the effect. If need, we will send sample back to you for checking quality.
--- Customized machine design:
According to customer's application, HiSpeed Laser may revise our machine accordingly for customer's convenience and
high production efficiency.
Company Profile
Other Products

--- Our service:

1	Free Pre-Sales Consulting / Free Sample Marking
2	Strict Quality Control of Production
3	5-7 Days Quick Delivery
4	2 Year Quality Guarantee
5	12 hours Quick Feedback & After-Sales Service
6	Quick Back-up Parts Available & Technical Assistance
7	Free Training Service
8	Special Designing, Customized, OEM Order is accepted

1	What's the package?
	We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2	Will the package damaged during transportation?
	Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
3	How to install and run the machine?
	Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Why Hispeed Laser?

1.Factory

(1)We are Factory to make laser machines with years of experience.

(2)We are a reliable and experienced supplier. Our machine quality are assurable.

(3)CE and FDA certificate .

2.Warranty & After-Sale Service

(1) All the machines will be fully tested before shipment and free training for operator.

(2) The whole machine guarantee for 2 Years(some models)

(3) 24 hours' technical Support--Email, Telephone,Video Chat Or Romote assistance.

(4) User-friendly English Manuals for the Introduction of our Software/Machine and
CD (Guiding Videos) for Sotware's installing/Operation and
Machine'Using/Maintaining.

3.Easy to use and safety

(1)CD, Video, User Manual to guide you how to install, operate, maintain machine
step by step.

(2)limit switch for safe processing.Emergency stop-turn off machine immediately
After Service Policy
Training & Technical Support
1.Machine manual and Operation video will be provided with machine.
2.Software manual will be provided in softcopy.
3.Initial parameters in the software will be setup so the machine is "ready to use".
4.Online technical support requests will be reponsed within 1 hours during working time,we will guide you by email ,telephone or video chat.
5.Actually this laser marking machine is quite simple on operation,most of our users can start to use the machine and learn well by themselves in short time.
6.Engineer onsite technical support is available,visa ,air tickets,accommodation and local transportation fee will be on client's side.(Appointment needed )

The Difference between Hispeed Laser and Some other Suppliers
he DThe Difference between Hispeed Laser and Some other Suppliersifference between Hispeed Laser and Some other Supplie

Different Aspects	Hispeed Laser	Some Suppliers May
Windows System	Windows 10	Win 7 or XP
Laser Source/Generator	Brand New	Refurbished or Second-hand
Control Card & Software	Genuine original JCZ brand	Copied
Z-axis	Motorized Z-axis	Manuel
Red Light Focus	Two red light spot	none
Warranty	24 months	12 or 18 months
After Service	Response within 3 hours(working time)	response in 3 days or no response

Repair Parts	Send alternative parts immediately, minimized the users' production delay	Users have to send the faulty or broken parts back to the supplier firsty,wait to repaired and then resend to customer,delay production
Business Type	Factory; Real manufacturer (Indicated in the Business License)	Trading company or agent
Certifications	CE,FDA
Trade Capability	With Export License
Sales & Merchandiser Team	Years of professional experience in international business, understand customer's needs well, keep customer updated for every details,tension- free purchsing process	Lack of experience for export custom and process

Packaging & Shipping
FAQ Q1: What's the warranty? A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our FAE will teach you how to remove the broken parts by video. Warranty excluding man-made damage. We are real warranty based series number on the machine, not false or empty promises, any too long time warranty is unreliable, ourt warrannty is effective and enforceable. Q2: What's the package? A2: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic Bag for waterproof. Q3: How to install and run the machine? A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer. You will get a CD of orginal marking software and online video about basic operation. You also will get a software operation manual and you can be a laser marking master after reading and practics. You can send your questions to our online after-serive 24 hours. Q4: How can I know the machine is what exactly I need? A4: Please send us your material photo, marking speed demand, marking size demand and so on, you will get a promptly help from us. Q5: Can you give a discount? A5: No, because quality can't be discounted, but you can choose simple basic version for your application, please contact our sales to know more. Q6: How you can keep your quality. A6: Strict production process with four times checking from metal parts, optical components, installing specification to whole machines' 12 hours burning. Meet CE, FDA, and IEC standards, you will get a unquestionably reliable machine from Hispeed Laser ! Your every peny is deserve. Contact Us
Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
