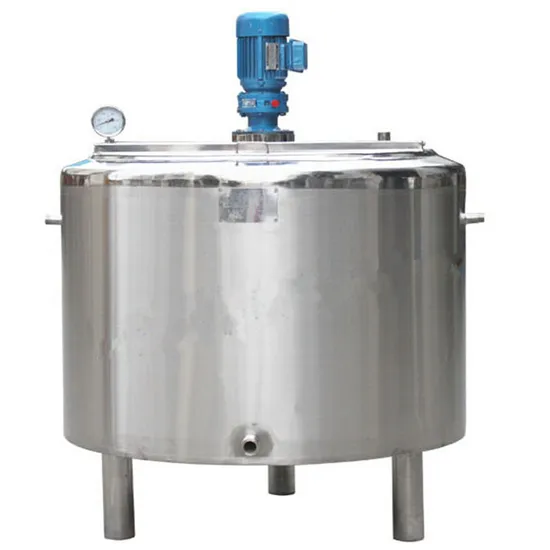

Sanitary Stainless Steel Jacketed Heating Blending Mixing Tank Price
| US$1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KQ
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid
Application Area
Food
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Circular Groove
Stirring Type
Spiral
Warranty
One Year
Working
High Speed Mixer
Name
Sanitary Stainless Steel Jacketed Heating Blendin
Material
Stainless Steel 304 /316
Usage
Milk / Drink /Water /Chemical
Heating
Electric /Steam /Hot Water
Capicity
300L-12000L
Motor Brand
Siemens /ABB/China Brand
Customized
Yes
Orign
Zhejiang China
MOQ
1 Set
Delivery
10 Days
Packing
Wooden Box
Spare Parts
Available
OEM
Yes
Voltage ,Hz,Phase
Make It to Your Order .
Manual Bool
Yes
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Wooden Box
Specification
Based on special order
Trademark
KQ
Origin
Shanghai China
HS Code
8479820090
Production Capacity
1000units/Month
Product Description
Sanitary Stainless Steel Jacketed Heating Blending Mixing Tank PriceDetails:
We design all kinds of stainless tanks. They are in reasonable design, advanced technology, automatic control and reach GMP standards. The tank adopts vertical or horizontal and single-layer or double-layer structure and adds heat insulator according to the requirements of customers. The inner layer is be polished to Ra0.45μ M and the outside surface adopts mirror or frosted plate to keep warm. There are water inlet, reflux inlet, sterilizing inlet, cleaning inlet, manhole cover and 0.45μ M air respiratorresuscitator.
Material:
The tank material usually uses SUS304 or SUS316L to make if the customer has no special requirements.
Why choosing our tank?
1. our tank have sales department, engineering department, after sales department, we will provide one-stop service for you;
2. We are not competing for the price but the high quality and friendly service we competition
3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;
4. The after sales colleague will service for you from place an order to the actual production;
5.10 years of industry experience, industry leader;
6. Factory, office site visit.
| Volume | Body Diameter X Body Height | Total Height | Insulate PU Foam | Inlet&Outlet |
| (L) | (mm*mm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2300 | 60 | 38 |
| 600 | 920*1000 | 2400 | 60 | 38 |
| 700 | 990*1000 | 2400 | 60 | 38 |
| 800 | 950*1220 | 2550 | 60 | 38 |
| 900 | 1010*1220 | 2700 | 60 | 38 |
| 1000 | 1060*1220 | 2700 | 60 | 51 |
| 2000 | 1340*1500 | 2750 | 60 | 51 |
| 3000 | 1410*2000 | 3500 | 60 | 51 |
| 5000 | 1910*2000 | 3850 | 60 | 51 |
| 10000 | 2300*2440 | 4500 | 60 | 51 |
| 15000 | 2530*3000 | 5200 | 60 | 51 |
| 20000 | 2640*3660 | 5800 | 60 | 51 |
Volume | Height of the whole tank (mm) | Height of the Tank Body (mm) | The Diameter of the Tan Body (mm) | Height of the Discharge Hole (mm) |
| 500L | 1725 | 800 | Φ 850 | 350 |
| 1000L | 1950 | 900 | Φ 1100 | 350 |
| 2000L | 2500 | 1300 | Φ 1300 | 400 |
| 3000L | 2800 | 1500 | Φ 1500 | 400 |
| 5000L | 3100 | 1650 | Φ 1800 | 400 |
| 6000L | 3350 | 1800 | Φ 1900 | 450 |
| 8000L | 3600 | 1950 | Φ 2100 | 450 |
| 10000L | 3800 | 2000 | Φ 2300 | 500 |
| 20000L | 5350 | 3400 | Φ 2600 | 500 |
