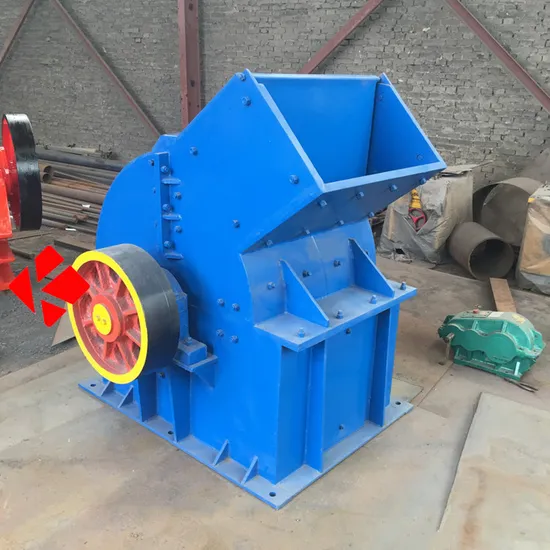

Mining Crushing Equipment Rock Gold Grinding Crusher Machine Hammer Crusher

Product Description

Product Description Hammer crusher machine is a coarse crushing equipment widely used in mining, construction, building materials, highways, railways and other fields.
Working Principle The working principle of the hammer crusher is based on the squeezing effect between the movable hammer plate and the static hammer plate. The motor drives the eccentric shaft to rotate through the belt, causing the movable hammer plate to periodically approach and leave the static hammer plate, thereby squeezing, rubbing, grinding and other multiple crushing processes for the material.
The structure of the hammer crusher mainly includes the frame, eccentric shaft, large pulley, flywheel, movable hammer, side guards, toggle plate, toggle plate rear seat, gap adjustment screw, return spring, fixed hammer plate and movable hammer plate, etc. Features include: Simple structure, easy to maintain and operate. The crushing ratio is large and larger materials can be broken into smaller particles. Stable performance, reliable operation, able to adapt to various harsh working environments
Machine Parameters

Model	Feed/Output size(mm)	Capacity	Power (kw)
PC300*200	≤5-15	800kg/h	5.5
PC400*300	≤10	1-5T	7.5
PC600*400	≤15	5-15T	18.5
PC800*600	≤15	20-35T	45
PC800*800	≤15	35-50T	55
PC1000*800	≤15	40-60T	115
PC1000*1000	≤15	50-80T	132
PC1400*1400	≤15	80-200T	280

Product Details
Application
Product Show
Crushing
