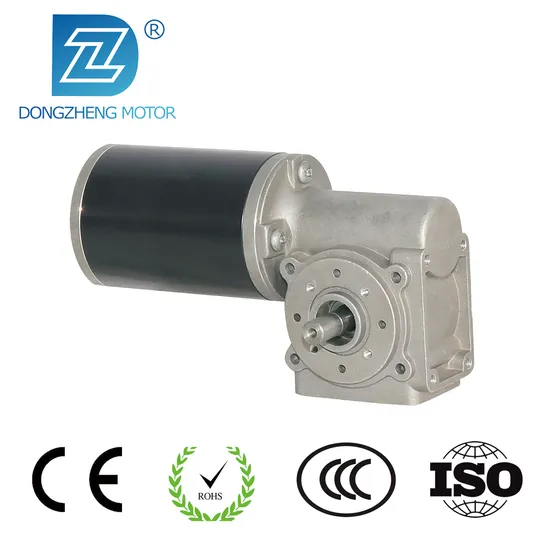

63mm DC Worm Gearbox Auto Door Generator Gear Motor
| US$33.00-41.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
63JW/63ZY105
Excitation Mode
Excited
Casing Protection
Closed Type
Number of Poles
2
Structure and Working Principle
Brush
Type
Zy
Certification
ISO9001, CCC, RoHS
Brand
Dongzheng
Gearbox & Motor Dia
63mm&63mm
No Load Speed
100~330rpm
Rated Load Speed
87~270rpm
Rated Load Torque
2.1~7.1n.M
Gear Ratio
10:1,15:1,30:1
Transport Package
CTN/Plt
Trademark
DZ
Origin
China
HS Code
8501310000
Product Description
63JW/63ZY105Description of The Product
1,Suitable application: gearbox and motor output shafts form a right angle.
2,12VDC is available, motor speed is adjustable upon request.
3,Encoder & brake is available upon request.
Motor Technical Data
TYPE | Rated voltage VDC | No-load Speed r/min | No-load current mA | Rated speed r/min | Rated torque mN.m | Output power w | Rated Current mA | Stall torque mN.m | Stall current A |
| 63ZY105-2420 | 24 | 2000 | 0.32 | 1550 | 0.125 | 20 | 1.6 | 0.55 | 6 0 |
| 63ZY105-2430 | 24 | 3000 | 0.40 | 2500 | 0.120 | 30 | 2.2 | 0.72 | 108 |
Gear Motor Technical Data 63ZY105-2420 DC Motor
| Reduction ratio | 50 | 30 | 15 | 10 |
| Number of threads | 1 | 1 | 2 | 3 |
| No-load speed r/min | 40 | 66 | 133 | 200 |
| Rated speed r/min | 31 | 51 | 103 | 250 |
| Rated torque N m | 4.3 | 2.6 | 15 | 0.85 |
| Permissibie load Nm | 10 | 8.0 | 5.0 | 3.0 |
63ZY105-2430 DC Motor
| Reduction ratio | 50 | 30 | 15 | 10 |
| Number of threads | 1 | 1 | 2 | 3 |
| No-load speed r/min | 60 | 100 | 200 | 300 |
| Rated speed r/min | 50 | 83 | 166 | 250 |
| Rated torque N m | 4.3 | 2 6 | 1.5 | 0.85 |
| Permissibie load Nm | 10 | 8.0 | 5.0 | 3.0 |
| Dimensions (mm) | Rated Voltage (V) | Power (W) | Reduction Ratio | Rated Torgue (N.m) |
| 63 | 12-36(DC) | 20-100 | 1:10-1:50 | 0.85-12.0 |
| 90 with AC motor | 110-380(AC) | 40-90 | 1:12.5-1:50 | 3.5-12.0 |
| 90 with DC motor | 12-36(DC) | 42-84 | 1:12.5-1:250 | 2.4-20.0 |
Packaging & Shipping:
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
