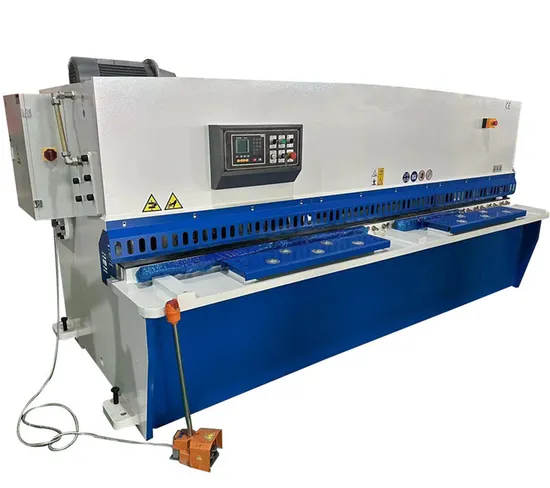

12*3200 Precision Plate Shearing Machine for Efficient Metal Cutting

Product Description

Hydraulic Shearing Machine 1. Main Features:
1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,
3.The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21Swith Delta inverter.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.
2. Standard Equipment:
Estun E21SsNC control System
Powered Back gaugeX-axis
DELTA Inverter controlled back gauge
HIWIN Ball screws & Polished rod with 0,02mm accuracy.
Squaring Arm and Front Support Arms
Germany Bosch-Rexroth Hydraulic or USA Sunny.
Germany EMB Tubing connector
Germany Siemens Main Motor
Hydraulic &Electrical overload protection
Cutting Line Illumination and wire for shadow line cutting
Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)
3. Safety Equipment:
Safety Standards(2006/42/EC):
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain)
South Korea Kacon Foot Switch(Level 4 of safety)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection
Our Services (1) 36 months quality guaranty
(2) free lifetime maintenance
(3) free training course in our factory.
(4) 18 hours on line service each day
(5) Strict quality control,3 times of testing
(6) engineers avaiable to go abroad
FAQ Price : Give me reply, i will give you my favorable price immediately !
Payment term : 30% deposit and the balance paid against copy of B/L in 3 days .
Package : Standard exporting package .
Operation manual and video disc :
When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc .
After-sales service :
1.machine is simple, generally, user can understand how to operate. There is operation instruction and disc .
2.welcome to our factory to learn how to operate our machine, we will give good training .
3.our engineer is available for user. If there is requirement, our engineer can go to user factory, and adjust machine, give good training to user .
