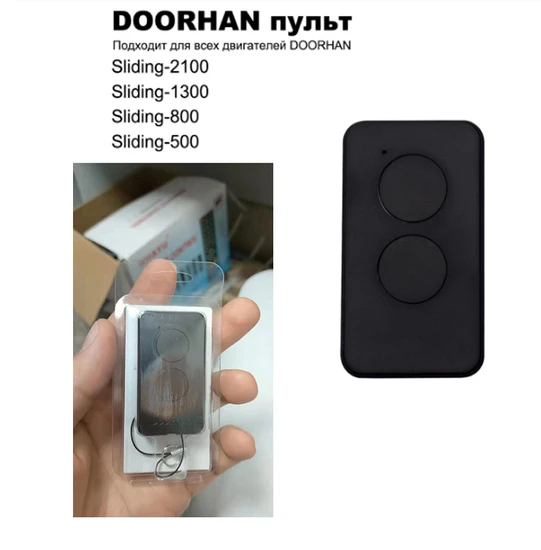

Doorhan Transmitter 2 PRO 4 PRO Wireless Remote Garage Door Lock Gate Key Dorhan 2 Rpo2button433m

Product Description

Product Overview remote control Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products,industrial control products FEATURES AT A GLANCE Programming / Learning Instructions
Program to Gate / Garage Door Openers the same way as original DOORHAN Transmitter 4 remotes, please refer to your receiver's user
manual. For a typical DOORHAN Garage Control Panel, the programming procedure is as follows:
1. Press and release the button R on the receiver.
2. The left side of display panel will show 0 then disappears immediately.
3. Press any button twice, coding is completed.
4. Press the transmitter button to test operation.
Note: To remove a single transmitter's code or all transmitter codes from the receiver memory please refer to your receiver
manual. 00:00 00:00 PRODUCT SPECIFICATIONS

Working voltage	DC6V (2016*2)
Operating Current	≤ 8mA
Working frequency	433mhz
Modulation Mode	ASK (AM)
The transmission power	≤ 100mW
Emission Distance	50 to 100 m
The encoding type	301

Application scenarios Delete All Codes
1. Turn on the power to DHRE-2 receiver unit.
2. Press CODE button for 10 seconds CODE1 (or SW1) - if you are using CH1, CODE2 (or SW2) - if you are using CH2.
3. LED1 will be flashing 10 seconds then switch off for 2 seconds and flash twice to confirm that the memory is clear.
4. Release the button. All the stored codes including the courtesy light codes should now be deleted. Confirm this by pressing the
transmitters previously used to operate the device. There should be no response.
