1ton 2ton 3ton 5ton Electric Wire Rope Stainless Steel Drum Prop Pulling Winch
Basic Info.
Model NO.
JH-20 Prop Pulling Winch
Type
Electric Winch
Driven Type
DC
Speed
Fast
Carrying Capacity
Weight Level
Tonnage
1T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Steel Wire Rope Average Static Tension
200
Steel Wire Rope (M/S) Average Speed
0.118
Drum Diameter*Width (mm)
430* 530
Drum Rope Capacity (M)
170
Winch Weight (Including Motor)
2600
Transport Package
Wooden Case or Carton Case
Specification
JH-20 Prop Pulling Winch
Trademark
zhongmei
Origin
Shandong, China
Production Capacity
10 Sets Per Month
Product Description
Introduction of 1Ton 2Ton 3Ton 5Ton Electric Wire Rope Stainless Steel Drum Prop Pulling Winch prop pulling winch adopts spherical worm gear vice drive, with compact structure, small size, can be the whole machine down the well, the winch structure is symmetrical, is long, the base is sled-shaped, in the well since moving smoothly and easily; winch low center of gravity, base rigidity is good, not only can play the top column, but also can be installed ground anchor, so easy to install, stable operation, safe and reliable.zmwm02Parameter of 1Ton 2Ton 3Ton 5Ton Electric Wire Rope Stainless Steel Drum Prop Pulling Winch
| Model Parameter | JH-5 | JH-8 | JH-14 | JH-20 | JH-30 | |
| Steel wire rope average static tension (KN) | 50 | 80 | 140 | 200 | 300 | |
| Steel wire rope (m/s) average speed | 0.17 | 0.12 | 0.115 | 0.118 | 0.13 | |
| Drum | diameter*width (mm) | 276* 372 | 280* 230 | 400* 317 | 430* 530 | 550*560 |
| rope capacity (m) | 80 | 100 | 130 | 170 | 220 | |
| Steel wire rope | diameter | 15.5 | 17 | 21.5 | 24.5 | 30 |
| construction | 6* 19 | 6* 19 | 6* 19 | 6* 19 | 6* 19 | |
| nominal extension strength (Mpa) | 1550 | 1550 | 1550 | 1550 | 1570 | |
| Explosion proof motor | Model | YBJ7.5-4 | YBK2-160M-6 | YBK2-200L1-6 | YBK2-200L2-6 | YBK2-280S-4 |
| Power (KW) | 7.5 | 7.5 | 18.5 | 22 | 45 | |
| Voltage (V) | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 | |
| Rotate speed (r/min) | 1450 | 970 | 970 | 970 | 980 | |
| Overall size: L* W* H | 1450*512*515 | 1550*530*570 | 1955*680*815 | 2560*968*797 | 3300*1077*1034 | |
| Winch weight (including motor) | 620 | 650 | 1350 | 2600 | 4460 | |

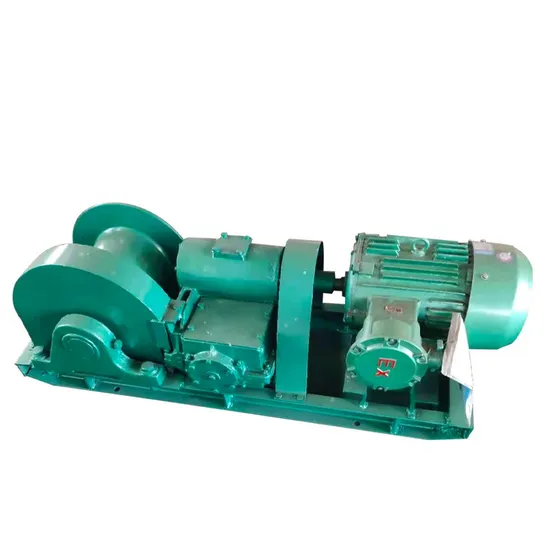

Pictures of 1Ton 2Ton 3Ton 5Ton Electric Wire Rope Stainless Steel Drum Prop Pulling Winch
