Hard Guide Gantry CNC Machining Center (G Series CNC Milling Machine)

Hard Guide Gantry CNC Machining Center (G Series CNC Milling Machine)

US$20,000.00-70,000.00 1 set (MOQ)

Basic Info.

Model NO.
G-3016, G-3522, G-4526, G-6530, G-8536
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
CNC System
Fanuc or Siemens
Interval of Both Columns
1600mm(Min.)
Max. Travel of RAM(Y-Axis)
1800mm(Min.)
Tool Magazine
24/32/40t Automatic Tool Change
Structure
Fixed Gantry Frame and Moving Table
Voltage and Power Capacity
According to Customer 65kVA
Color
Standard or Advance Reserve
X,Y,Z -Axis Guideway
Hard Guide or Static Pressure Guide
Load Weight
Optional :6000-100000kg
Standard Configuration
Rich and Variety
Transport Package
Wood Pallet
Specification
CE ISO9001
Trademark
TIMAC
Origin
Made in China
HS Code
8457103000
Production Capacity
100sets/Year

Product Description

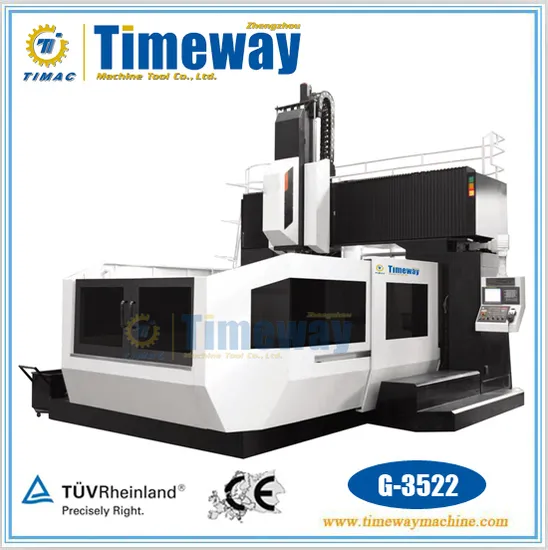

G Series Gantry Machining Center (hard guide)
Machine Summary:
G series gantry machining center adopts the closed gantry frame structure consisting of bed ,column and beam ,with features of high rididity and high stability.The machine tool can finish the processing of milling ,boring ,drilling ,tapping and sinking.

It is mainly designed for the processing of automobile sheet metal mold,plastic mold ,precision machinery parts and aerospace and shipbuilding .Equipped with the accessory milling head ,it can realize the five-face processing at one time of clamping ,serving several purposes.It can effectively enhance the processing precision and processing efficiency.

The casting of the machine tool is made of high strength inoculated cast iron and high quality resin bonded sand,which is treated by multiple aging techniques to ensure the rigidity and stability of the machine tool.

Three axes are all equipped with the sliding guide treated by the high-frequency quenching to enhance the whole bearing capacity and durability.
Structure and performance
1. Apply the computer-aided engineering (CAE)system to finish the optimized structure design and enhance the reliability of machine tool,and the finite element method (FEM)to take the scientific analysis and optimization of design structure,which can guarantee the rigidity and stability of the whole machine structure.
2. The surface of hard guide is treated by the high frequency quenching and the hardness can reach HRC 45°,with the higher cutting propety.
3. Apply two-times aging treatment for the cast to guarantee the complete release of internal stress and the precision persistence of the machine tool.
4. X-axis can adopt the constant flow static-pressure guide optionally with the high bearing capacity ,strong abilities of shock proof and shock absorption,good precision stability and long service life.
5. The integrated casting of machine tool base with the travel of 6m and less can reduce the binding face to guarantee the rigidity and precision stability.
6. The addition of supporting mechanism on screw with the travel over 4m can effectively avoid the falling caused by the deadweight due to the overlength of screw and thus prolong its service life and reliability of precision during the processing.
7. The transmission mechanism with the large loading adopts the precision planet gear box characterized by the large tansmission torque ,high efficiency and precision.All servo axes are driven by spring coupling with good rigidity and accurate travel.
8. The beam adopts the composite structure of rectangle up and down stage solid guide and rolling guide to neutralize the disturbing moment casued by the offset of center of gravity of spindle box's boring and milling head and traverse slide .Y-axis traverse slide,transverse guide and slide wedge all adopt the filming treatment to enhance the precision and service life.
9. X-axis can adopt the constant flow static pressure guide optionally with the high bearing capacity,strong abilities of shock proof and shock absorption,good precision stability and long service life.
10. The precision assembly of spindle in the constant temperature,dust-free and closed envieonment can guarante the assembly precision.
11. 3-axis bearing seat is scraped precisely without the gasket design to guarantee the smoothness of 3-axis transmission.
12. The assembly of joint surface adopts the technique of glue injection,which can greatly increasel.
13. The foot treadle (optional) and moving foot-operated switch(optional) are convenient for users to get up and down the machine tool to change the tool.
14. The large type adopts the hanging-type operation box that can be rotatable to the table sufae and convenient for users' operation.
15. Hydraulic balancing system can guarantee the smooth operation of Z-axis.
16. It leaves the mounting surface of tool magazine to add the tool magazine quickly later.
Technical parameters
Specification Units G-3016/G-3516 G-3522/G4522 G-4526/G-6526 G-6530/G-8530 G-6536/G-8536/G-10536
Table Table dimension mm 2500/3000*1200 3000/4000*1600 4000/6000*2000 6000/8000*2500 6000/8000/10000*3000
Interval of two columns mm 1600 2200 2600 3000 3600
Max.load kg 6000 6000 32000/48000 48000/65000 48000/64000/100000
T-slot(dimersion*distance*quantity) mm 22*150*7 28*150*9 28*200*9 28*200*11 28*200*15
Travel X-axis travel mm 3000/3500 3500/4500 4500/6500 6500/8500 6500/8500/10500
Y-axis travel mm 1800 2400 2800 3200 3800
Z-axis travel mm 1000(1250)* 1000(1250)* 1250(1500)* 1250(1500)* 1250(1500)*
Spindle Distance from X-axis end surface to table mm 200-1200(1450)* 200-1200(1450)* 200-1450(1700)* 200-1450(1700)* 200-1450(1700)*
Spindle type BT50 Direct-connection BT50 Direct-connection BT50 Direct-connection BT50(BT60) Direct-connection BT50(BT60) Direct-connection
Rivet type BT50-45° BT50-45° BT50-45° BT50-45° BT50-45°
Spindle speed rpm 3000 3000 3000 3000(1500) 3000(1500)
Main motor power kw 22/26 30/37 37/51 37/51(60/84) 37/51(60/84)
Max.output torque Nm 560/662 764/942 942/1298 942/1298(4580/6412) 942/1298(4580/6412)
Feeding speed Guide type X/Y/Z Hard guide Hard guide Static-pressure guide/
Hard guide/Hard guide
Static-pressure guide/
Hard guide/Hard guide
Static-pressure guide/
Hard guide/Hard guide
Rapid traverse speed X m/min 10 10 10 10 10
Rapid traverse Speed Y m/min 10 10 10 10 10
Rapid traverse speed Z m/min 10 10 10 10 10
Cutting and feeding speed mm/min 5-8000 5-8000 5-8000 5-8000 5-8000
Tool magazine Tool magazine capacity T 24/32/40 24/32/40 24/32/40 24/32/40 24/32/40
Tool holder type BT50 BT50 BT50 BT50 BT50
Max.length of tool mm 300 300 300 300 300
Max.diameter of tool(full tool/isolated tool mm Φ125/Φ228 Φ125/Φ200 Φ125/Φ200 Φ125/Φ200 Φ125/Φ200
Tool exchange time sec. 3.5/5.5 3.5/5.5 3.5/5.5 3.5/5.5 3.5/5.5
Precision (ISO) Location precision X(Semi-closed loop) mm 0.032/0.035 0.035/0.04 0.004/0.05 0.05/0.06 0.05/0.06/0.08
Location precision Y(Semi-closed loop) mm 0.025 0.03 0.03 0.032 0.035
Location precision Z(Semi-closed loop) mm 0.023 0.023 0.025 0.025 0.025
Repeated location precision X(Semi-closed loop) mm 0.012/0.014 0.014/0.015 0.015/0.022 0.022/0.035 0.022/0.035/0.04
Repeated location precision Y(Semi-closed loop) mm 0.013 0.013 0.015 0.015 0.015
Repeated location precision Z(Semi-closed loop) mm 0.012 0.012 0.012 0.012 0.012
Others Power capacity Kva 65 65 80 100 130
Pressure of air supply kgf/cm2 6.5 6.5 6.5 6.5 6.5
Overall dimension(Length*Width*Height) mm*mm*mm 9300/9800*5300*6000 9500/10500*6200*6000 14000/16000*6500*6500 16500/20000*7300*6500 16500/20000/25000*8000*6500
Net weight of tool machine (approximate) kg 38000/40000 45000/48000 65000/80000 90000/110000 100000/130000/160000

Standard configuration:
FANUC CNC system
Direct-connected spindle speed is 3000rpm
Both sides of screw chip removal device
Spindle with two-stage speed change box
Electric tank with air condition
Air filtration purification device
Spindle oil cooler
Cooling device
Hydraulic system
Air curtian protection
Air gun
Machine protection shield
Linghting system
Three color light alarm
Cutting blow
Communication interface
Handheld electronic hand wheel
Tools and tool box
Horizontal adjustment bolts and shim
Technical documents
Optional configuration:
SIEMENS CNC system
Gear-type spindle speed is 6000rpm
Belt-type spindle speed is 6000rpm
Disc-type tool magazine
Chain-type tool magazine
Vertical and Horizontal tool magazine
CNC rotary table
Grating scale
Water gun
Accessory head grabbed automatically
Attachment head loss prevention system
Fully-auto. 90 degree milling head
Semi-auto. 90 degree milling head
Manual 90 degree milling head
Extended milling head
Side milling head
Flat right-angle milling head
Column heightening
Z-axis travel is 1250m Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe CNC Lathe
CNC Machining Center
CNC Milling Machine
Grinding Machine Milling Machine
Special Use Lathe Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
