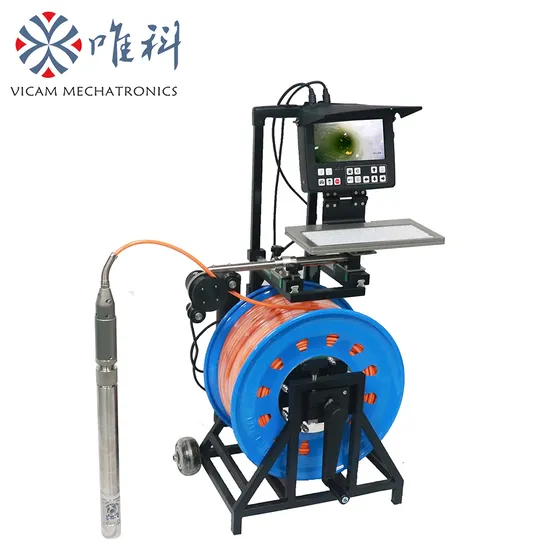

HD 360 Degree Rotation Water Well Inspection Camera with Depth Counter Function

Product Description

Water well camera 200m cable manual reel 360 degree rotate borehole camera
with dual view and HD 8inch screen
Product Description

1. Dia.45mm dual view(side/down) rotation camera head 2. Pan 360° rotation, Wateproof 30bars3. 1/3 CMOS,1.3MP pixel HD camera sensor4. 8 inch IPS lcd screen, 1280*720 resolution5. DVR control box with audio, video recording and photography function6. 200m Dia.8mm flexible cable7. USB wireless keyboard to typewrite the words8. Camera video resolution is 720P9. Built in 10500mA li-ion battery, support uint working more 5hours.10. Digital meter counter function, error is less than 1%

Product Parameters
Part 1: Dia.45mm dual view rotation camera head
* Camera size Ø45mm x 422mm, sensor 1/3" CMOS, 1.3MP pixel
* Waterproof up to 20bars(underwater 200m)
* Stainless steel camera housing
* PC LED light cover
* Total weight is 2.4KG
* 6pcs high light LED for side camera
* 6pcs high light LED for down camera
* Lens window sapphire glass
* Portective camera connector

Part 2: Waterproof DVR control box
* 8"HD IPS LCD Screen, 1280X720 resolution
* Waterproof control panel
* HD DVR SYSTEM with recording 720P video,
audio and photography function
* USB wireless Keyboard real time typewriting
* 6pin port for video input; 8pin port for depth counter
* Digital meter counter display on screen
* 10500mA rechargeable Li-ion Battery Pack
* Switch button for side and down camera
Part 3: 200m manual reel with reel brake
* Maual cable reel with brake device
* Cable diameter Φ8mm
* On-screen meter counter
* 200m cable length
Part 4: Camera centering skid
The skid diameter can be adjustable.
