Basic Info.
Separation Mode
Filter Type
Operating Type
Intermittent Type
Centrifuge Type
Three-Foot Centrifuge
Product Name
GMP Standard Pharmaceutical Sterile Full Closed Co
Discharge Type
Manual Top Discharge
Bowl Diameter
300-1200 mm
Transport Package
Standard Export Package
Production Capacity
50 Sets Per Month
Product Description

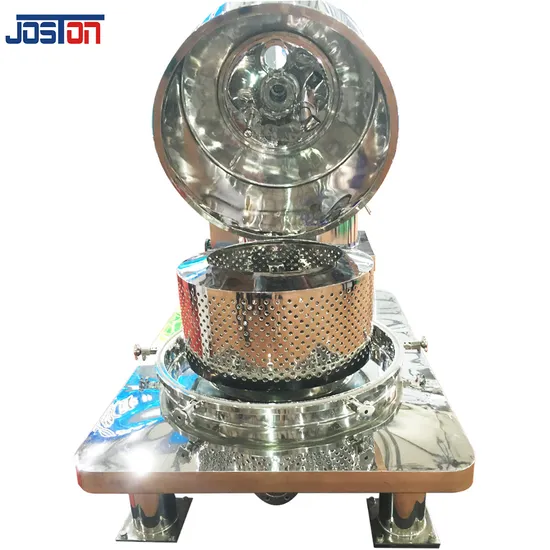

Product Description GMP Standard Pharmaceutical Sterile Full Closed Cover Centrifuge Machine For API Dehydration
PS series centrifuge is a filter centrifuge operated intermittently by manual loading and unloading. This model has the advantages of simple structure, convenient operation, and strong adaptability. The filtering time can be flexibly controlled according to the material characteristics and separation requirements. The filter residue can be fully washed, and the solid particles are not easy to be damaged. It can be widely used in the chemical industry, light industry, pharmacy, food, textile, machinery, and other industries.
Type | Basket | Power (kw) | Weight (kg) | Overall size (L × W × H) (mm) |
Diameter (mm) | Volume (L) | Capacity (kg) | Speed (rpm) | G-force |
PS300 | 300 | 5 | 10 | 2500 | 1050 | 1.1 | 180 | 890*600*500 |
PS450 | 450 | 20 | 25 | 1900 | 910 | 1.5 | 250 | 980*650*870 |
PS600 | 600 | 40 | 50 | 1500 | 756 | 3 | 800 | 1300*880*900 |
PS800 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 1300 | 1800*1200*1140 |
PS1000 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 2000 | 2050*1500*1120 |
PS1200 | 1200 | 250 | 300 | 800 | 431 | 11 | 2500 | 2350*1650*1370 |
Detailed Photos
Drawing
1. vibration isolator 2. chassis base 3. rotor drum base 4. bearing 5. outer covering 6. upper cover of bearing 7. rotor drum tube 8. cover fastener 9. lip ring 10. cover 11. spindle nut 12. spindle 13. flame-proof lamp 14. passive wheel 15. balancer 16. electric motor 17. electric motor protection cover 18. the base of electric motor 19. adjusting bolt 20. belt protection cover 21. active wheel 22. screw of ring 23. triangular belt 24. feeding pipe 25. sluicing pipe 26. discharge pipe 27. upper cover of the bearing 28. bearing 29. viewing mirror 30. bearing base Feature 1. Structural features: Full flip cover structure, smooth transition of structural parts, polished surface, effectively eliminating sanitary dead corners. External structural parts, fasteners, and drums are made of stainless steel, which is easy to clean thoroughly, ensuring cleanliness requirements and meeting GMP standards.
2. Convenient operation: The base is a flat plate structure, the machine has a low center of gravity, small footprint, and convenient operation.
3. Good vibration reduction effect: The configuration of liquid damping has good vibration reduction effect and simplifies daily maintenance.
4. Strong versatility: The flip cover is equipped with a feed pipe, a washing pipe, an observation mirror, and a lighting hole. It is equipped with an online cleaning system (optional) to clean the inner wall of the centrifuge shell, the inner and outer surfaces of the drum, and the surface of the liquid collecting tank online. It is suitable for the separation of suspensions with granular solid phases, and can also be used for the separation of fibrous materials, with a wide range of applications.
5. Smooth start: frequency converter start, smooth start, adjustable separation factor; equipped with nitrogen protection system (optional), it can achieve the explosion-proof requirements of closed structure, suitable for application in toxic and flammable occasions.
The full-cover top discharge basket centrifuge plays an important role in the separation process of suspensions in chemical, light industry and other industries due to its high efficiency, safety, easy cleaning and maintenance.
Application It is applicable to the filtrating of suspension-containing granules and also be used for the dehydration of fiber substances and especially applicable to the filtrating of materials of high viscosity and fine granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Company Profile
Wenzhou Yinuo Machinery Co., Ltd. belongs to the Joston Industry group. The company's production base is located in the Binhai Industry Park of Wenzhou Economic and Technological Development Zone The company is specialized in the design, production, and installation of pharmaceutical machinery, dairy/beverage &food machinery, chemical industry machinery and sanitary fluid types of equipment etc. We are the leading professional machinery and equipment supplier; we produce equipment with a long history of over 15 years in China. We can supply you with the full set solutions of the engineering, equipment, and technical services in the pharmaceutical and food industry after years of specific experience in the pharmaceutical industry and food industry, engineering research, and technical service.
Certifications
Our Clients
Q | Are you a factory or a trading company? |
A | We are a manufacturer. Our company specializes in producing and manufacturing industrial machinery, including stainless steel reactors, evaporators, crystallizers, distillers, and complete production lines for various applications such as fruit juice and herbal essential oil extraction. By maintaining our own manufacturing facilities, we ensure high-quality control, competitive pricing, and the ability to customize equipment to meet our clients' specific needs. |
Q | Do you do OEM and ODM services? |
A | Yes, we do, we can make the equipment as per your drawing, or if you give us the technical requirements, we can help design as well. |
Q | How will your company control the equipment quality? |
A | We have a rigorous quality control process that includes: 1)Use of high-quality materials and components. 2)In-house testing and inspection at various stages of production. 3)Compliance with industry standards and certifications. 4)Continuous improvement and adherence to best manufacturing practices. |
Q | Do you supply installation equipment overseas? |
A | Yes, we offer comprehensive installation and training services to ensure the smooth operation of our equipment. Our technical team can assist with on-site installation, and we provide detailed training for your staff on equipment use and maintenance. |
