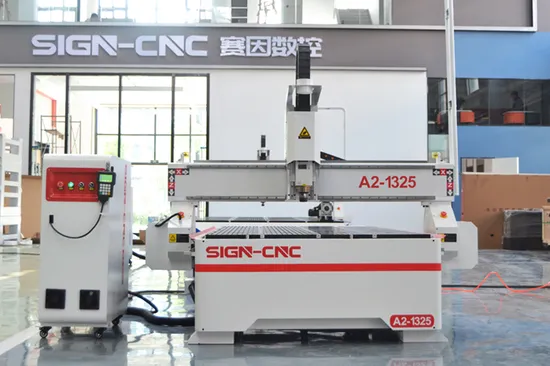

Woodworking Machine 1300*2500mm 3 Axis CNC Router Machine 1325 Wood Router for Wood and Aluminum

Product Description

2019 newest type 1325 cnc router machine/wood cnc router/wood engraving and cutting machine
SIGN-1325 CNC Router Descriptions
Adopt constant power water-cooled frequency spindle, high speed, low noise and long life.Cheap cost is very suitable for CNC hobby friends, small engraving shop and factories as well. Popularmach3 control system is very easy for every buyer and beginner. Aluminum casting structure won't transform after long use.Especially for metal engraving.
Machine Features
1. whole body is 2 parts ,ensure the high strength of machine . bracket is stainless steel pipe. Whole lathe bed and gantry are whole casting aluminum (whole casting iron is optional)
2. XYZ axis adopt linear square guide rail (Taiwan HIWIN or PMI, diameter 20mm)smooth operation, high precision, long life
3. Adopt Ncstudio control, support win7/xp/2000. control system is Richauto A11S, 512MB.
DSP and Mach3 control system is optional.
4. stainless steel water slot cooling system help cool tools when working, avoide breaking tool, sticking material.
5. Adopt 3.2 KW water cooling spindle, big power suitable for engraving and cutting. ER20, support tool diameter 3.175mm,4mm,6mm,8mm,10mm,12.7mm.
6. The machine is good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, applicable materials are acrylic, double color boards, PCB, copper, aluminum, etc
7. Adopt Artcam 2008 or Artcam 7.0 tool path design software. Compatible with Type3, ucancam, AutoCAD and so on.
8.Working table moving makes sure machine high accuracy.
9.XY adopt dustproof cloth to make machine maintainess easy

Technical Parameters

NO.	Model	SIGN-1325
1	X,Y,Z Working Area	1300*2500*200mm
2	Table Size	2100X3200mm
3	XYZ Positional Accuracy	±0.03/300mm
4	XYZ Repeatiblity Accuracy	±0.05mm
5	Lathe Structure	Cast Aluminum lathe bed
6	X, Y, ZStructure	Taiwan Hwin Round Guide Rail
7	Transmission	Original TBI Ball Screw
8	Table Surface	Vacuum table
9	Gantry Structure	Cast Aluminum Gantry
10	Max. Speed	0-6000mm/min
11	Max. Working Speed	0-3000mm/min
12	Spindle Power Motor	3. 2kw
13	Spindle Speed	0-24000RPM
14	Drive Mode	Leadshine Stepper Motor
15	Working Voltage	AC220V/380V, 50/60Hz
16	Command	G code, *uoo, *mmg, *plt
17	Operating System	NC Studio System or DSP System or Marh3 CNC
18	Interface	USB/Internet Line
19	Collet and Tools	ER11, φ3.175, φ6
20	X,Y Working Delicacy	<0.01mm

Samples
Package
Company information
Jinan Sign CNC Equipment Co., Ltd. locates in beautiful city of Jinan. It's a high-tech enterprise, engaged in research and development, production, sales in the integration of motion control system integration, mechanical and electrical integration products.

Our products lnclude: advertising CNC router, woodworking CNC router, stone CNC router, embossment CNC router, CNC Laser engraving machine, CNC Laser cutting bed, CNC Laser marking machine, CNC Plasma cutting machine, cutting plotter and mould machine.

Our productions are widely used in advertising, gifts, electronic appliances, furniture manufacturing, organic glass, packaging and printing, all kinds of non-metal processing and cutting etc industry.

We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.

We have been experienced in exporting the CNC machine for over 5 years, familiar with the different requirements from all kinds lines. Meanwhile, we insist the principle of "the best products, the most reasonable price, the maximum benefits for customers", there are prestigious fame in the industry business field.
