Industrial Slurry Decanter Centrifuge High Speed Centrifuge

Product Description

Introduce
Decanter Centrifuge Automatic Horizontal Decanter Centrifuges
Main advantages
1. Continuous feeding, separating and discharging
2. Low energy consumption
3. Simple operation and easy maintenance
4. CE, ISO, TUV
Properties
Application: water sludge separation
Motor brand: ABB,SIEMENS
Bearing:S-K-F
Length-dia-ration: more than 4
Conveyor flight: lining or tiled
Control PLC system: with or without
Basic principles
For the auto decanter centrifuges stable performance sludge dewatering separator, the continuous feeding, separating and discharging can be realized as it rotates at its full speed.
It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.
Structure
1. Feeding pipe 2. Discharge screw 3. Drum 4. Casing 5. Differential mechanism
Working principle
The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum;
under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine.
The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.
Structural Diagram

Technical Paramter:

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800

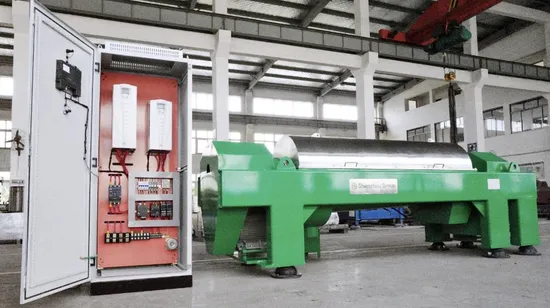

More parts show of the decanter centrifuge:
Productive process
Packing
1. Shenzhou Machinery Equipment Co., Ltd. is a professional centrifuge supplier.
2.We have an experienced team and professional design institute with over 30 years of experience in centrifuge machinery.We sincerely invite you to visit, If it's not convenient for you to come to our factory, you can also visit by telephone video conference.
3.Our products are exported to many countries and areas, such as the USA, Korea, India, Indonesia,Thailand, Vietnam,Japan, Denmark,Romania, Bulgaria,Russia,South Africa, and so on.
4.At the same time,our product with best prices and good quality,welcome to Shenzhou!
Our service& FAQ
The one-year warranty period for the whole machine except for tubes and human factors etc, and 12 months of after-sale service from the date when you receive the machine or 12 months when installation is finished;
Consultant services for whole machine life, and 24-hour technical support by email;
UPS, English software, user manual, and the installation & debugging by our experienced technicians.
1. Can your machine meet our needs well?
We will supply you with a proposal as to your specific requirement, and each machine is customized to satisfy the customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer and have been in the industry for more than thirty years.
3. What's your payment way?
T/T by our bank account directly, or by Made in China trade assurance service, by the West Union, or in cash.
4. How can you ensure the machine's quality after we put the order?
Before the delivery, we will send you the machine's pictures and videos, or you can come to us to have the quality checked by yourself, or by the third-party inspection organization contacted by your side.
5. We are afraid you won't deliver the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Made in China trade assurance service or LC, Which will fairly protect your rights and money throughout the transaction process.
6. Why did you choose your company?
We have been specializing in the manufacturing of centrifuges for over 30 years. We can provide top-notch quality and very competitive prices .
