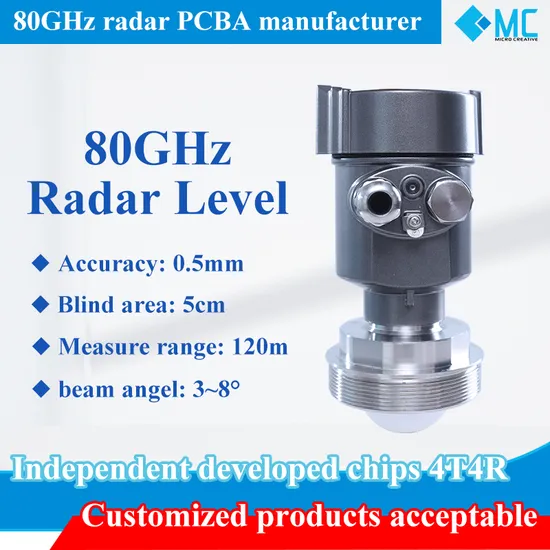

High Accuracy 2 Wires 80GHz Non-Contact Radar Level Transmitter Meter-10m
| US$200.00-900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LM7833-NORUIAES-EUAI-G7/2T0NOF
Range
0-10m
Measurement Accuracy
±1mm
Accuracy
0.1%
Kind
Liquid Level Transmitter
Structure
All in One
Warranty
1 Year
Certification
CE, RoHS
Material
S316+PTFE
Process Temperature
-20℃~80℃
Display Module
Common&Bluetooth
Antenna Type
Ss/PTFE
Application1
Universal & High Temperature
Application2
Liquids & Bulk Solids
Customized
Yes
Output
4~20mA with Hart
Transport Package
Carton
Trademark
Microcreative
Origin
China
HS Code
9026100000
Production Capacity
100000
Product Description
Our Advantages
| Exact measuring results independent of process conditions |
| Maintenance-free operation through non-contact measuring principle |
| Application-oriented configuration enables a simple device selection |
| Customized products which can adapt to all circumstances |
| Quickly response to any after sales service |
| Microcreative 80GHz Milimeter wave radar level meter, it is a universal sensor for continuous level measurement of liquids and bulk solids under all process conditions. Due to its application-oriented configuration and setup, it offers a reliable and economical solution for all level measurement applications. Meanwhile, it ensures maintenance-free operation in all applications because it has variable antenna systems. |
| The 80GHz FMCW radar has a narrower beam angle, which can better penetrate the space between the agitator and the tank wall and reduce the interference caused by the agitator. The 80GHz FMCW radar adopts spherical lens, which is not easy to suspend large area ofcondensation.Combined with the proprietary algorithm has obvious advantages in themeasurement ofcondensation environment conditions. The 80GHz FMCW radar has a highly stable algorithm, which can stably track the liquid levelmeasurement such as sputtering, splashing and eddy current caused by agitation and spoiler. |
| Frequency | 76GHz~81GHz | IP Grade | IP67 | |
| Range | 10m / 30m / 60m / 120m | NEPSI | Ex d ia II CT6 | |
| Accracy | ±1mm | Process connection | Thread / Flange | |
| Beam angle | 3° / 8° | NW/GW | 2.480Kg / 2.995Kg | |
| Process temp | 85ºC/200ºC | Package size | 370×270×180mm | |
| Product size | φ100×270mm | Process pressure | -0.1~1MPa | |
| Cable entry | NPT½ / M20×1.5 | Recommended cable | AWG18 / 0.75mm2 | |
| Housing | Aluminum / Stainless steel | Output | 4~20mA / Hart / 485 / TTL |
