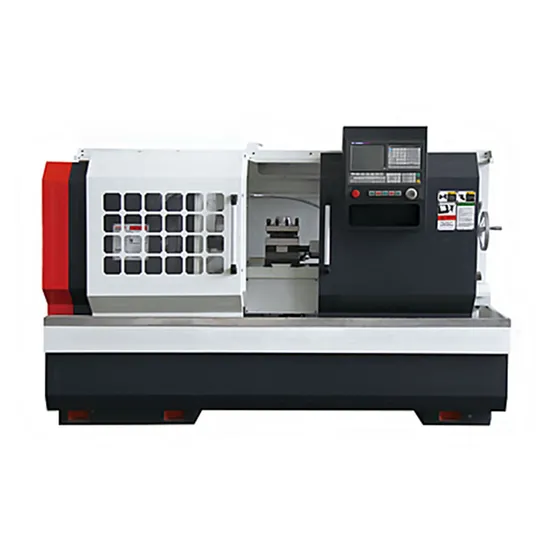

Advanced Automatic CNC Lathe Machine with Flat Bed Design

Product Description

Features
1. Our casting workshop adopts lost foam to guarantee the size and precision of casting parts. 2. All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses. 3. All the guide surface are performed quenching, hardness is HRC45-52 degrees.

Standard configuration	Optional configuration
GSL980TB3 or GSK980TDC control system ,	Siemens ,Fanuc ,SYNTEC and other control system
Eletric 4 position tool post	3-jaw manual chuck
3-jaw manual chuck,	Spindle hole 80mm
Spindle hole 52,	Hydraulic chuck,
Manual tailstock	6/8 electric turret ,
Low-high two steps spindle speed	Hydraulic tailstock,
	Indepedent spindle
	Automatic chip conveyor

PRECISION CHUCK Standard with Manual chuck, Optional:hydraulic chuck or pneumatic chuck.


CNC CONTROL SYSTEM Standard :GSK Optional :Siemens, Fanuc,Syntec, Mitsubishi and others.



TOOL POST/ TURRE T Standard with 4 staion electric tool post ,6/8 station electric turret are optional.
Specifcation

Item	Unit	CK6140
Guideway width	mm	400
Max. swing dia. over bed	mm	Φ400
Max. swing dia. over slide	mm	Φ210
Max. workpiece length	mm	750/1000/1500/2000/3000
Max. workpiece weight	kg	300
Spindle bore	mm	Φ52(Opt.:Φ80/Φ104)
Spindle taper	/	MT6#(spindle bore Φ52);
		Φ90 1:20(spindle bore Φ80);
		Φ113 1:20(spindle bore Φ104)
Spindle speed	rpm	Independent spindle:100~1600;3 class gears:21~150,66~500,162~1500
Spindle head type		C6(spindle bore Φ52);D8(spindle bore Φ80,Φ104)
Chuck size	/	8''/10''
Spindle motor	kw	7.5
X axes travel	mm	250
Z axes travel	mm	600/850/1350/1850/2850
X/Z axes ball screw O.D.	mm	25/50
X/Z axes positioning accuracy	mm	±0.015
X/Z axes repositioning accuracy	mm	±0.006
X/Z axes rapid rate	m/min	4
Toolshank size	mm	25×25
Tailstock quill travel	mm	150
Tailstock quill dia.		Φ75
Tailstock quill taper	/	MT5#
Turning accuracy	/	IT6-7
Turning roughness	μm	Ra1.6
Turning roundness	mm	0.005
Turning flatness	mm	0.025/300
Overall size	mm	2550×1550×1700(for 750mm)
N.W./G.W.	Kg	2100/2300
