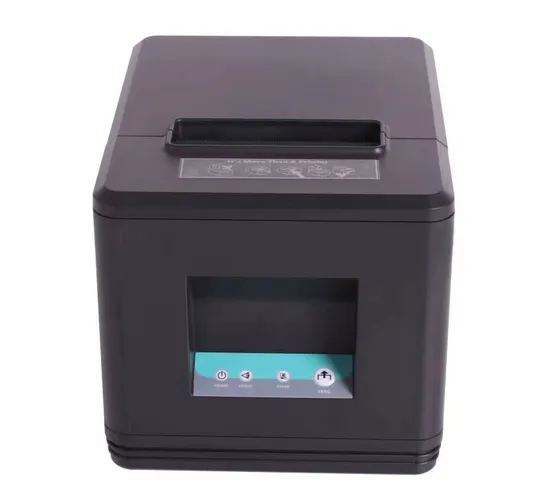

80mm POS Thermal Printer with Interface Serial/USB/Ethernet
| US$30.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
OA-28
Automatic Two-sided Printing
Support Automatic Two-sided Printing
Supply Paper Mode
Automatic
Interface Type
Bluetooth
Network Function
Wireless Network
Style
Black and White
Consumable Type
Split Cartridge
Max. Paper Size
80mm
Character Structure
Full-width Characters Printers
Optional1
58mm Printer
Optional2
ODM
Optional3
OEM
Optional4
Own Brand
Optional5
Serial/USB/Ethernet
Optional6
USB+LAN+Bluetooth
Transport Package
Optional
Specification
80mm
Trademark
oawell
Origin
Guangzhou
Production Capacity
50000
Packaging & Delivery
Package Size
62.00cm * 32.00cm * 52.00cm
Package Gross Weight
1.940kg
Product Description
Main features:• Fast printing of text and images
• Long lasting auto-cutter up to 1.5 million cuts
• USB port 230mm/s, support network monitor function,IP change directly from different gateway and QR code.
• It's built-in power adaptor,which avoid messy code every where, save space.
• With wall hanging equipped.
• It can be used as top paper coming printer and front paper coming printer at the same time.
• Friendly utilities,virtual usb or usb hid setting by utilities
| Model | OA-28 | ||||
| Printing | Print Method | Direct Thermal | |||
| Print Speed | 200/230mm/s | ||||
| Resolution | 576dots/line or 572dots/line | ||||
| Printing Width | 72mm | ||||
| Paper separator(option) | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | ||||
| Interface | USB /USB+Lan | ||||
| Page Mode | Support | ||||
| Memory | Input buffer | 256kbytes | |||
| NV Flash | 256kbytes | ||||
| Fonts | Font A | 12x24 | |||
| Font B | 9x17 | ||||
| Chinese | GB18030,BIG5 24x24dots | ||||
| Japanese/Korea | Support | ||||
| User-defined | Support | ||||
| Power , Paper,Erro | Support | ||||
| Kichen Function | LED light with beeper | Without | |||
| Hanging device | Equipped | ||||
| Barcode | 1D | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 | |||
| Detection | Sensors | Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional) | |||
| Power Supply | Input | AC 100V-240V 50/60HZ | |||
| Output | DC 24V/2.5A | ||||
| Paper | Paper Type | Thermal Receipt Paper | |||
| Paper Width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm | ||||
| Paper | Paper Thickness | 0.06~0.08mm | |||
| Roll Dia | Max. Ø 83 mm | ||||
| Paper Load | Easy paper loading | ||||
| Paper Cut | Manual tear or Auto-cutter | ||||
| Physical Characteristics | Working Condition | 0°C~45°C, 10%~80%RH | |||
| Storage Condition | -10°C-60°C,10%~90%RH | ||||
| Dimensions | 191(D)x146(W)x129(H)mm | ||||
| Net weight | 1.94kg | Gross weight | 2.14kg | ||
| Reliability | Printing head | 150KM | |||
| cutter | 1.5million | ||||
| Accessories | data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option) | ||||
| Packing | Individual box | Dimension 25X20X16cm(LXWXH) | 1unit/carton | ||
| Master carton | Dimension 63X27X35cm(LXWXH) | 6units/carton | |||
| OS | Emulation | ESC/POS | |||
| Driver | Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS | ||||
| SDK | Android, IOS | ||||
