Semi-Automatic/Automatic Dual-Shaft Paddle Non-Gravity Dry Mortar Mixer for Sales

Product Description

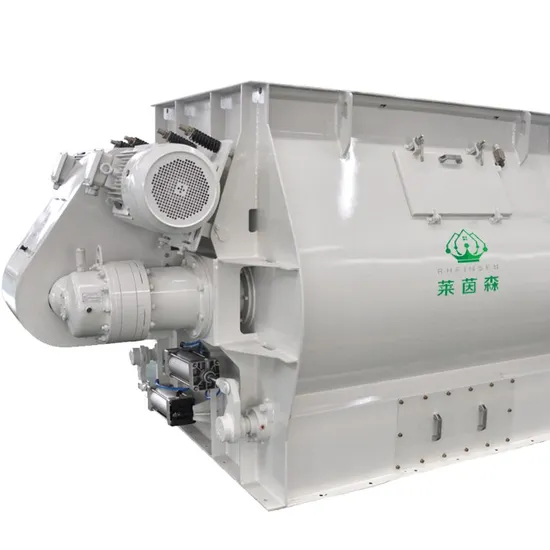

Semi-automatic/Automatic Dual-shaft Paddle Non-gravity Dry Mortar mixer For Sales
Company Profile

Mittelrhein international company is located in Shandong Logistics Center, featuring high-efficiency domestic logistics in China and low-cost logistics expenses.
Shandong is a major heavy industry hub in China. With 20 years of procurement history, our team provides efficient and high-quality services. We have long-term partnerships with hundreds of different factories, all of which have passed our product quality selection.
Our international procurement team is dedicated to providing high-quality products and reliable after-sales services, solving the after-sales issues of overseas buyers. Our international logistics have also been carefully selected.
The long-term partner logistics companies possess highly flexible control capabilities, whether it is rail transportation, sea transportation, or combined transportation. The routes and emergency transfer operations are very mature and experienced, which can better reduce unnecessary effort, time, and shipping cost losses for our customers. Product Description

1. The overall design of the twin-shaft mixer is more user-friendly. All parts are installed on the mixing cylinder, with large maintenance space..
2. Transmission device: planetary reducer, stable transmission, low noise, long service life, no oil leakage.
3. Shaft end lubrication: Fully automatic grease lubrication, four-pump oil pump, independent oil supply, easy maintenance and repair; output high-pressure grease, high viscosity and reliable sealing, low oil consumption, can effectively reduce grease pollution to concrete.
4. Belt self-tensioning device: can avoid abnormal wear and damage of the belt; can reduce the labor intensity of maintenance personnel and reduce maintenance costs.
5. Double-layer steps, step height conforms to human body structure. With maintenance ladder, it is safe and convenient to enter and exit the mixer..
6. Large inspection door/observation door: with movable nylon cover to prevent the inspection door from sticking
7. Mixing device: high mixing efficiency, used for mixing large aggregates, up to 160mm aggregate; no dead angle mixing, more uniform mixing
8. Large size discharge door: large opening design, for quick discharge needs; hydraulic drive, discharge door switch reliable. Equipped with switch door signal detection device, more convenient control.
Detailed Photos
The material is thrown into the air clockwise, and the two mixing shafts cross-mix the input material. The paddles can disperse the material, achieving a good mixing effect. Generally, each batch of material can be evenly mixed in about 150 seconds.other products such as Dry mortar mixer
Putty paste mixer
Putty powder mixer
Real stone paint mixer
Pulse dust collector
Screw conveyor
Bucket elevator
High-speed disperser
Powder particle packaging machine
Real stone paint packaging machine
Sand dryer
Our Advantages

Product Parameters

Type concrete mixer	CMP50	CMP100	CMP150	CMP250
Output capacity(L)	50	100	150	250
Input capacity(L)	75	150	225	375
Output weight(Kg)	120	240	360	600
Mixing power(Kw)	3	5.5	7.5	11
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/2	1/2
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)	700
Lifting power(Kw)
Dimension(L*W*H,mm)	950*790*1200	1670*1460*1450	1670*1460*1620	1860*1650*1780
Type concrete mixer	CMP330	CMP500	CMP750	CMP1000
Output capacity(L)	330	500	750	1000
Input capacity(L)	500	750	1125	1500
Output weight(Kg)	800	1200	1800	2400
Mixing power(Kw)	15	18.5	30	37
Dischar ging power(Kw)	optional
Planet/mixing arm	1/2	1/2	1/3	2 / 4
Paddle(nr)	1	1	1	1
Discharging paddle(nr)	1	1	1	1
Weight(Kg)			3900	6200
Lifting power(Kw)			7.5	11
Dimension(L*W*H,mm)	1870*1870*1855	2230*2080*1880	2580*2340*2195	2890*2602*2220

Packaging & Shipping

After Sales Service

1.24 hours support.
2.Arrange the install and test without delay.
3.One year guarantee for probems caused by quality.
4.Supply spare parts in time.
5.Engineers can conduct on-site surveys as requested by the client.
