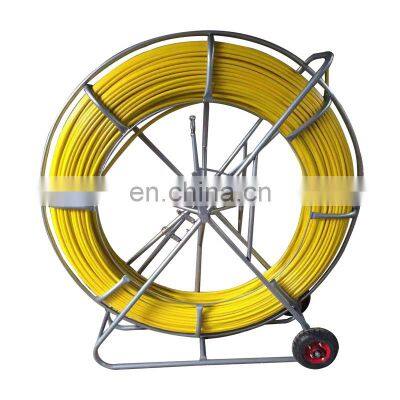

Underground Cable Pulling Tools powered duct rod pusher /fiber cable puller

Product Description

Product Description
Product Description
Underground Cable Pulling Tools powered duct rod pusher /cable pulling rod

Specification	Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,Φ17,Φ18
		Rod Length (m)	10-500m
		Frame Spec.(mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700
		Wheel Diameter(mm)	300mm
		Wall thickness of Metal Frame	2.2mm
		Color	Red, green,blue, yellow, red, white etc  accept customized
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
		Rod Outer	High Density polyethylene coating
		Iron Frame	Steel with high-temperature sprayed plastic or Spray coating
		Wheel	rubber
		Brake	Yes
		Drawing head	copper
Physical Characters	Density	55g/m
		Working temperature	-40°C to +80°C
		Breaking tension	100kg
		Bending Radius	295mm
		Technology	Pultrusion
Packaging	Inside	Plastic woven strip wind around the frame
		Outside	Wooden pallet and Wooden box

Detailed Images
Our factory details
Accessories
Application
1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Fiberglass rod is lightweight and flexible.
3.Dia of duct rod:4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm
4.Length of pulling rod:100m/ 150m/ 200m;
Packing & Delivery
Related Products
FAQ & Contacts
Q: Are you trading company or manufacturer ?
A: We are manufacturer with our own factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge. And the freight cost will on the buyer's side.
Q: What is your terms of payment ?
A: Payment<=USD1000, 100% in advance. Payment>=USD1000, 30% T/T in advance ,balance before shipment.
If you have other questions, please feel free to contact us as freely.
