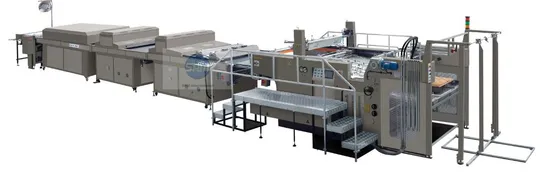

Jb-720A/800A/1020A/1050A Fully Auto Screen Printing Machine-Auto Flat Screen Press

Product Description

Product Description

JB-1050AG Full Automatic Stop Cylinder Screen Press INTRODUCTION:
The machine adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree automatization and so on, it is suitable for printing on ceramic and glass applique, electron industry (film switch, flexible circuitry, meter panel, mobile telephone), advertisement, packing and printing, brand,textile transfer, special technics etc. It is the newest product of flat feed cylinder screen press.
Detailed Photos
Feeder head
The original rear pick-up feeder technology taken from the offset Press, ensures stable and smooth feeding of various types of substrate. Depending on the substrate, overlapped (stream) or single sheet (universal) fed can be selected easily. Two suck and two delivery feeding system
Feeding board
The vacuum absorb is assembled in the bottom of the feed board,matching with the push and press paper construction, insure various materials all can be delivered smoothly.
Squeegee system (constant squeegee pressure system)
Squeegee and ink return blade are driven by individual cams and a two-step action cam helps reduce the squeegee shock onto the screen mesh; Due to the positive down cam action, the printing pressure is evenly applied to the cylinder Screen Frame System
The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder

Frame circulate railway
Imported beeline guide and ball bearing, reduce the shake and noisy when the whole machine is working under high speed, insure the stability of printing Delivery board
The delivery board can be overturned up to 90degree to allow easy access to the screen mesh for cleaning and adjusting the frame,installing the blade; along with the vacuum adsorption, insure collection smoothly

Cylinder and registration system
Cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision; at the same time, gripper of cylinder and pull/push side-lay both have sensors for supervising if the printing stock is in correct place. The vacuum cylinder with +/- 0.01mm accuracy across the cylinder surface, a large cylinder shaft and specially made high precision bearings ensure the highest quality printing at higher speed. Product Parameters

Max paper size	1050x750mm
Min paper size	560x350mm
Max printing size	1050x740mm
Paper thickness	90-420gsm
Border	≤10mm
Printing speed	500-4000pcs/h
Power	3P 380V 50Hz 10.7kw
Weight	5600kg
Dimension	4750x3060x1600mm

Company Profile
Our Service
Our service
At SHM, you can expect satisfactory customer service with long tradition. We are highly devoted to the most optimal solid and liquid separation solutions to meet your specific needs. We have the effective service system to ensure professional and flexible management of any affairs.
1.Pre-sales technical consultation
2.Model selection
3.Machine guidance
4.Operation & maintenance training
5.Maintenance service
6.Quick supply of spare parts
7.Customer satisfaction track
After-sale Service
SHM promises that all machines made by us come with services of repair and replacement. Machine warranty is 12 months. We provide free repair services to any failures caused by us within warranty time. However wearing parts are not included.
1.Any quality failure problems happens within guarantee period, we will reply within 4 hours after receiving your request.
2.SHM will provide lifelong maintenance service to all parts and regular maintenance to flatbed die cutters.
3.We will handle any quality failure occurred within warranty time.
4.We will provide lifelong technical support started from using of the machine.
5.We will supply normal parts within warranty period to ensure better user experience. Parts supply will be charged after warranty period.
FAQ
Q : What about the price of the machine?
A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information.
Q:How long is the warranty of the machines ?And other Service ?
A: Warranty is 12 months after the machines arrive.
Our engineer can provide service overseas if you need.
And we also provide installation and operation training.
Q : How about your delivery time ?
A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more.
Q:What`s the price term and payment method?
A:We usually use Fob, CIF and CFR.
Payment method : 100 % T/T (30% deposit + 70% before shipment ) OR 100% L/C.
