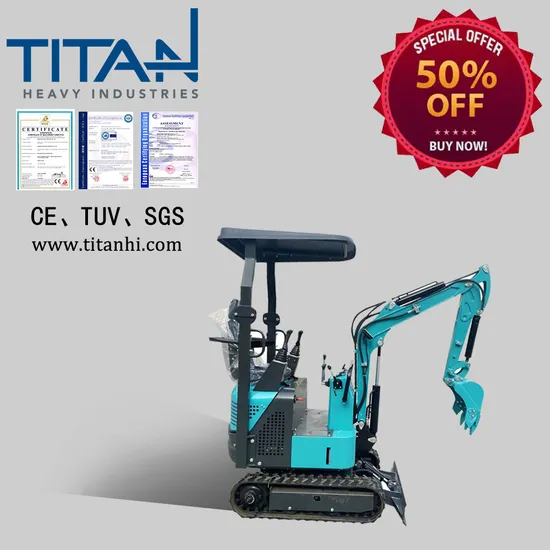

1.2ton 1.5ton CE Hydraulic Home Garden 360 Micro Used Kubota Engine Escavatore Small Digger Mini Bagger Crawler Excavator

Product Description

1ton 1.5ton CE Hydraulic Home Garden 360 Micro Used Kubota Engine Escavatore Small Digger Mini Bagger Crawler Excavator
Product Description
Main Features Small size and easy to transport, could be loaded onto light truck or small trailer, six sets could be loaded into one 20GP container to save freight cost. Famous brand hydraulic system parts ensure the stable quality. boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, papermaking factory etc. and could replace 4~5 manpower.

Engine
Model	KOOP KD192F-1, 7kw/3000rpm EURO V Emission
Type	Direct injection, wind cooled, natural intake
No. of cylinder	1

Main Performance
Main Speed	r/min	0-13
Traveling Speed	km/H	2
Grade ability	KN	30°
Traveling Tracking Force	KN	8.3
Bucket Digging Force	KN	7.2
Arm Digging Force	KN	4.6
Hydraulic System
Hydraulic system working pressure	Mpa	16
Hydraulic Pump		Gear Pump
Hydraulic pump flow	L/min	18
Fuel Tank Capacity	L	26
Hydraulic Tank Capacity	L	14.5 in Hydraulic tank 21.5 in Hydraulic system
Overall Dimensions
Overall Length	mm	2840
Overall Width	mm	880
Overall Height	mm	2200
Counterweight Ground clearance	mm	385
Axle Base	mm	900
Track Width	mm	180
Undercarriage Width	mm	840
Undercarriage ground clearance	mm	132
Operation Paramters
Operation Weight	KG	950
Bucket Capacity	m³	0.023
Max. Digging Radius	mm	3065
Max. Digging Depth	mm	1715
Max. Diiging Height	mm	2600
Max. Dumping Height	mm	1830
Tail Swing Radius	mm	800

Attachment
Packing&Shipping
Application
TL10E excavator with compact design, it is suitable to be used for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse.
OUR SERVICE
Pre-Sales Service
(1) Inquiry and consulting support.
(2)Sample testing support.
(3)View our Factory.
After-Sales Service
(1)Training how to instal the machine, training how to use the machine.
(2)Engineers available to service machinery overseas.
FAQ
Q:Why choose Titan?
1) Titan: an experienced loader manufacturer with over 11 years.
2) Titan TEAM: customers-focused,you'll get reply within 5 minutes.
3)Titan: premium quality with reasonable price.
4) Titan: CE,BV,SGS,ROPS and FOPS,ISO9001:2008 varified.
Q:What is Titan warranty?
1) Titan after-sales: life-long, meantime offer one year and one month warranty.
2) Titan proposal: order some wearing parts with loader for easy maintenance.
Q:What about Titan delivery term?
10-14 days after down payment received.
Q:What about the payment term?
30% advance payment,70% balance by T/T.
