Dongguan Manufacturer Metal Fiber Laserdie Cutting Machine

Dongguan Manufacturer Metal Fiber Laserdie Cutting Machine

US$100,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GS-3015G
Application
Home Appliance, Environmental Equipment, Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, Metal Plate & Pipe Processing
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber Laser
Laser Technology
Laser Control Fault Cutting
Laser Type
Fiber Laser Generator
Working Area
3000mm*1500mm
Laser Power
1000W~8000W Optional
Laser Wavelength
1064nm
Repeat Positioning Accuracy
≤0.03mm / M
Working Voltage
3 Phase 380V ±5% / 50Hz/ 60Hz/ 100A
Maximum Cutting Speed
30 M/ Min
Minimum Line Width
0.15mm
Maximum Cutting Thickness
10mm
G.W.
5.0t
Transport Package
Packaged by Plywood
Specification
CE, ISO, SGS, FDA
Trademark
Glorystar
Origin
Guangdong, China
HS Code
8456100090
Production Capacity
8000sets/Year

Product Description

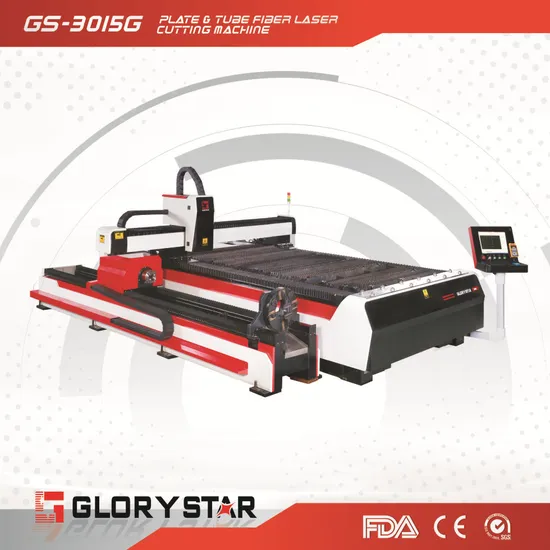

Dongguan Manufacturer Metal Fiber LaserDie Cutting Machine
Product Features
Imported high precision ball screw/ rack and pinion transmission, high precision linear guide rail.
Imported servo motor driving system , imported helical gearbox.
Separate cutting tube device.
Fast cutting speed, high efficiency,safe, stable performance.
Accessories
Technical Table
Model No. GS-3015G
Laser Power 500W-8000W(Optional)
Working Area 3000*1500mm
Total Power Consumption 10Kw<60Kw
Transmission Mode Gear and Rack Double drive
Voltage and Frequency 380V 50Hz(60Hz)
Dimension 4800*3260*1750mm

Applicable Materials
Mainly applied to all kinds of sheet metal materials with non-contact fast cutting,hollowing and punching. Such as mild steel, stainless steel, alloy steel, manganese steel,galvanized, aluminum, copper and metal pipe processing, etc.

Applicable Industry
Widely used in all kinds of metal products industries such as sheet metal processing, kitchen ware and bathroom ,advertising & signs, lighting & hardware,electrical cabinets, auto parts,machinery and equipment, household appliance,elevator and precision parts processing ,etc.
GLORYSTAR 1000W FIBER LASER CUTTING THICKNESS
Materials Thickness(mm) Cutting speed (m/min) Auxiliary Gas Air pressure (bar)
Carbon steel 0.5 50 Air 6
0.8 28 Air 8
1 23 Air 10
2 6.5 O2 3.5
3 3.5 O2 0.5-1
4 2.3 O2 0.5
5 1.8 O2 0.5
6 1.4 O2 0.5
8 1 O2 0.5
10 0.8 O2 0.5
12 0.65 O2 0.5
14 0.6 O2 0.5
Stainless steel 0.5 50 N2 7
0.8 33 N2 10
1 25 N2 12
2 8 N2 15
3 2.8 N2 18
4 1.2 N2 18
5 0.8 N2 18
6 0.45 N2 18
Stainless steel 0.5 55 Air 8
0.8 38 Air 9
1 28 Air 12
2 8.5 Air 15
3 3.3 Air 18
4 1.35 Air 18
5 0.9 Air 18
6 0.5 Air 18
Aluminum 0.5 25 Air/N2 8
0.8 18 Air/N2 9
1 12 Air/N2 12
2 3.5 Air/N2 18
3 1.5 Air/N2 18
4 0.8 Air/N2 17
Brass 0.5 30 N2 12
0.8 17 N2 12
1 12 N2 15
2 3 N2 18
3 1.3 N2 18
Copper 0.5 18 O2 12
0.8 12 O2 12
1 6 O2 12
2 1.5 O2 15

Sample Show
Our Factory
About Us
Dongguan Glory Star Laser Technology Co., LTD, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment. The company owns office building, R&D Building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory. The company's main products are metal laser cutting machines, non-metal laser cutting machines, laser marking machines,laser welding machines and bending machines. The annual production capacity of 8,000sets of products sold in more than 100 countries and regions. The company was identified as the national high-tech enterprise, and repeatedly won the technology Innovation Award. As a leader in laser equipment,Glorystar Laser technology Co.,Ltd has a complete R&D system, with many domestic famous universities and research institutions to maintain the close optical and technical cooperation, also is Nanyang institute of science and technology Graduate Trainee base. Products made EU CE certification and the SGS certification, and in all aspects of the incoming, process, machine, shipping and other compliance with ISO quality and environmental management system management guidelines to ensure that the national quality. Carrying the Global view sight, GLORYSTAR keeps on focusing the laser science and technology to share with you in the future successfully
