Laminate Sheet FR4/ G10/G11 Epoxy Fiberglass High Voltage Insulation Sheet

Laminate Sheet FR4/ G10/G11 Epoxy Fiberglass High Voltage Insulation Sheet

Product Description

Product Description
Product Description

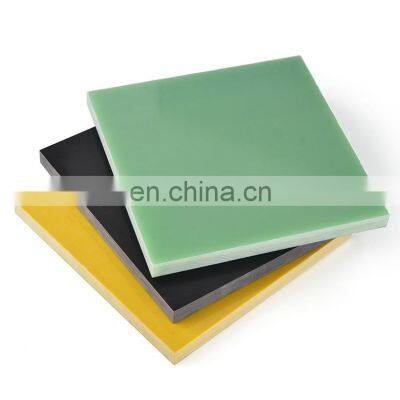

FR4/ G10/G11 Epoxy Fiberglass Laminate Sheet
This product is made of epoxy resin and fiberglass cloth, the model is 3240, it has high mechanical properties
in the medium temperature . Suitable for the high insulation structure of mechanical,electrical and electronic
components . Epoxy woven glass fabric laminated sheet, made into highly insulating parts of machinery and
electrical equipment, and have good electrical and mechanical performance under normal condition.
NO.
PROPERTIES
UNIT
Standard value
1
Flexural strength perpendicular to laminations
A: Under normal conditions
E-1/150: Under 150±5℃
MPa
≥ 340
2
Notch Impact strength parallel to lamination (charpy)
kJ/m2
≥ 33
3
Dielectric strength perpendicular to lamination (in oil 90±2℃) 2.0mm in thickness
MV/m
≥ 14.2
4
Breakdown voltage parallel to lamination
(in oil 90±2℃)
kV
≥ 35
5
Dielectric coefficient (1MHz)
-
≤ 5.5
6
Loss factor (1MHz)
-
≤ 0.04
7
Water absorptionD24/23, 1mm in thickness
mg
≤ 19
8
Insulation resistance impregnated in water, D-24/23
Ω
≥ 5.0×108
9
Density
g/cm3
1.90-2.2

Product Usage
Related Products
Company Introduction
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts, has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining
large production equipment.
Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.
2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.
3. Insulation Machining Parts Series : Customized according to the customers' drawings and designs,welcome to contact us for more details.
Our Services & Strength Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total
customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam,Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.
