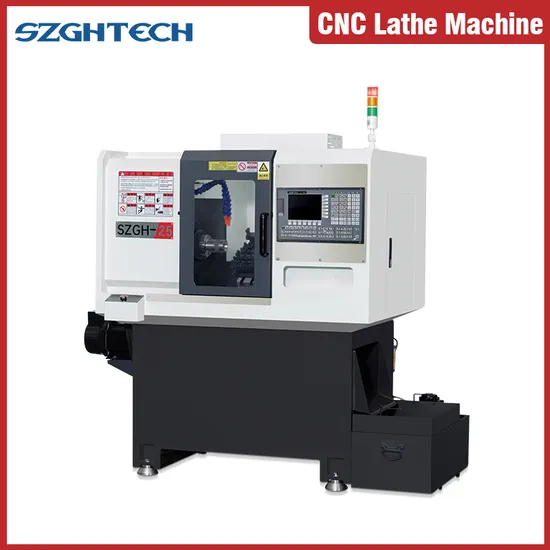

Szgh CNC Type High Precision Efficient Metal Mini CNC Lathe Machine

Szgh CNC Type High Precision Efficient Metal Mini CNC Lathe Machine

US$7,000.00
1-9 Pieces
US$6,500.00
10-999 Pieces
US$6,000.00
1,000+ Pieces

Basic Info.

Model NO.
SZGH-25
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Travels
X-Axis 500 mm, Z-Axis 180 mm
Max. Diameter of Bar Bore
25 mm
Spindle Motor Power
2.2kw
Spindle Nose Taper
A2-4
Weight
1400 Kg
Dedicated Service
Professional Planning
Transport Package
with Wooden Box Package
Specification
1700*1400*1600mm
Trademark
SZGH
Origin
China
HS Code
8458110090
Production Capacity
500sets/ Month

Packaging & Delivery

Package Size
170.00cm * 1400.00cm * 160.00cm
Package Gross Weight
1400.000kg

Product Description


Szgh CNC Type High Precision Efficient Metal Mini CNC Lathe Machine Prodcut Ocerview
SZGH-25 is suitable for batch production of copper, iron, aluminum and stainless steel bars within 25mm, and batch production of open-type forged parts with automatic feeding of pellets within 50mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 250mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single side cutting amount within 2mm, precision tolerance within ±0.01mm, and smoothness within 1.6. It is widely used in the upgrading of hard rail CNC lathes and hydraulic automatic lathes to realize automatic production and to save labor costs and improve product quality.
Standard Configuration
Technical parameter item Unit Standard value Max value
Processing Capacity Max. diameter of bar bore mm 25 26
Max. particle diameter (disk type) mm 200 300
Max. length of workpiece mm 150 180
Cutting amount of stainless steel on one side mm 2 2.5
Machining accuracy of the workpiece mm ±0.01 -
Surface roughness Ra 1.6 -
the height of center tool holder mm 40 -
Turning Diameter mm 350 -
Square Knife Specifications mm 16 -
Travels X-axis effective travel (diameter) mm 500 -
Z-axis effective travel mm 180 -
Feed X-axis rapid traverse m/min 25 30
Z-axis rapid traverse m/min 25 30
X-axis servo-motor power kW 1.3 -
Z-axis servo-motor power kW 1.3 -
Spindle Max.Spindle Speed rpm 3500 4000
Spindle Motor Power kW 2.2 -
Spindle nose taper - A2-4 -
Support hydraulic chuck size inch 5 6
Dimensions Dimensions mm 1700*1400*1600 -
Total Weight kg 1400 -

Machine tool specifications and component items Specification Standard Optional
Part Specifications Screw 25mm Taiwan ball grinding precision grade -
Guide rail 25mm Taiwan H-class linear guide rail -
Bearing - Domestic brand front 2 rear 2 high-speed angular contact bearings
Spindle motor 2.2kW Variable frequency drive type 3.7kW servo spindle
Feed servo 1.3kW SZGH Speed Servo -
CNC Control - SZGH
SZGH
Machine specifications Bed Type 30° Slant Bed -
Base form - Heavy-duty anti-deformation patented base -
Clamping method - hydraulic clamping -

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.
Product Features
System
GH-980TC-2 adopts advanced CNC technology to provide precise processing control and efficient production capacity. It enables high-precision machining of complex parts, meeting customers' stringent requirements for quality and precision.
Application
FAQ
1. Who are we? We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,
Korean, Italian, and so on.

6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.

8.Does your cnc support booting logo exchange?
Yes, no problem.
