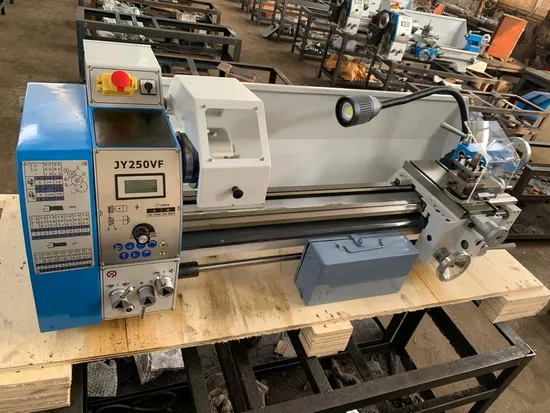

Mini Bench Lathe Senmo Metal Hobby Lathe Jy250vf Variable Speed Household Lathe
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
JY250VF
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE
Condition
New
Max. Swing Over Bed
250mm
Distance Between Centers
550mm (Optional 750mm)
Max. Swing Over Cross Slide
150mm
Spindle Bore
26mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84589900
Product Description
| Bench Lathe JY250VF Feature |
| ·The spindle is variable speed, easily operating. |
| ·The spindle speed can be adjusted variably during its range of 50-2000rpm, easily read. |
| ·Supersonic frequency hardened bed way. |
| ·Precision roller bearing for spindle. |
| ·High quality steel, ground and hardened gear inside headstock. |
| ·Various threads cutting function available. |
| Specifications | JY250VF |
| Max. swing over bed | 250mm |
| Distance between centers | 550mm (optional 750mm) |
| Max. swing over cross slide | 150mm |
| Spindle bore | 26mm |
| Spindle taper | MT4 |
| Range of spindle speed | 50-2000rpm |
| Step of spindle speed | variable |
| Range of metric threads | 18kinds (0.2-3.5rpm) |
| Range of imperial threads | 18kinds (8-56TPI) |
| Top slide travel | 70mm |
| Cross slide travel | 115mm |
| Tailstock quill travel | 70mm |
| Taper in tailstock spindle | MT2 |
| Motor power | 750W |
| Packing size | 1320*570*610mm |
| N.W/G.W | 120/140kg |
| Standard Accessories | Optional Accessories |
| ·3 jaw chuck | ·Steady rest |
| ·4-way tool post | ·Follow rest |
| ·Dead center | ·Face plate |
| ·Chip tray | ·Live center |
| ·Toolpost guard | ·Turning holder |
| ·Chuck guard | ·4 jaw chuck |
| ·Splash guard | |
| ·Tailstock side brake | |
| ·Toolbox & tools |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
